Запчасти Case IH FLX4375 (02-006) - ENGINE MOUNTING GROUP, NO REPTO (FLX4300) (01) - ENGINE

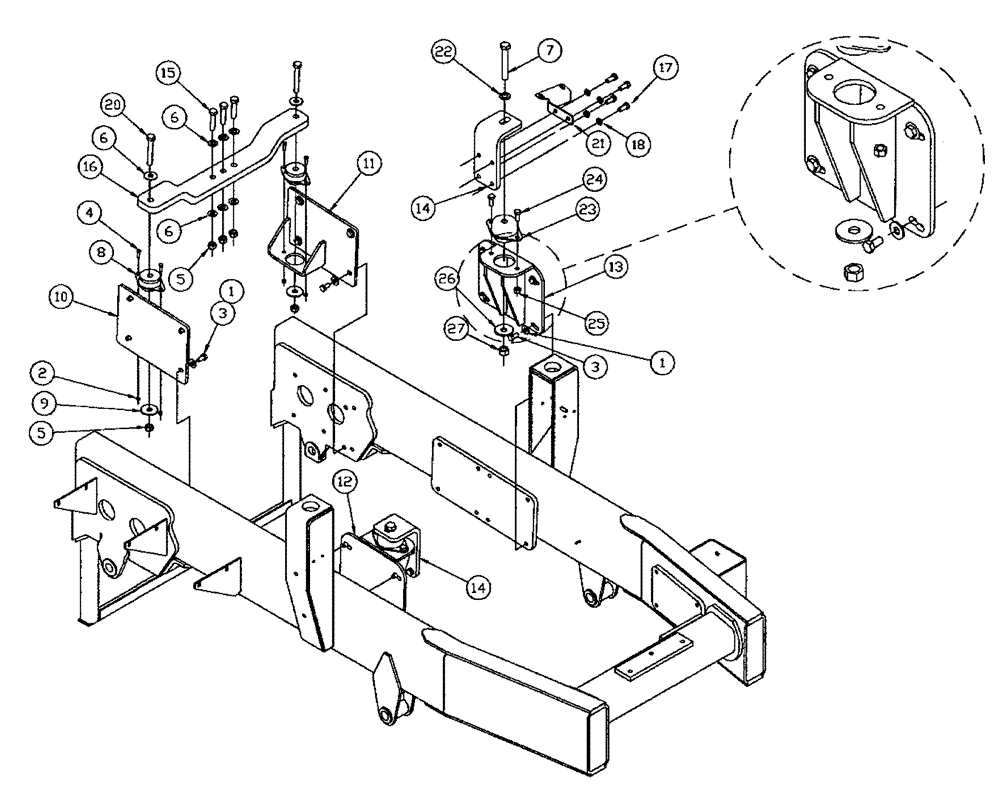

Схема запчастей Case IH FLX4375 - (02-006) - ENGINE MOUNTING GROUP, NO REPTO (FLX4300) (01) - ENGINE
16
7
11
1
14
6
1
20
24
12
15
13
3
6
27
25
8
9
q10
21
3
22
5
26
2
23
18
5
6
4
17
14

Артикул

Название

Примечание

Количество

1

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

16шт.

2

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

3

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

16шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

5

86512555

NUT,M16 x 2, Cl 10

5шт.

6

BN300501

WASHER

M16, Fw, 10.9

8шт.

7

86639145

BOLT,Hex, M20 x 130mm, Cl 10.9

2шт.

8

BN306728

ENGINE MOUNT

2шт.

9

BN308164

WASHER

Rebound

2шт.

10

BN315587

MOUNTING PLATE

RS, FRT, Engine

1шт.

11

BN315586

MOUNTING PLATE

CS, FRT, Engine

1шт.

12

342750A1

MOUNTING PLATE

rear engine/frame

1шт.

13

342751A1

MOUNTING PLATE

rear engine/frame

1шт.

14

BN324981

ENGINE MOUNT

Engine

2шт.

15

120092

BOLT,M16 x 70mm, Cl 8.8

3шт.

16

BN315591

CROSSRAIL

Crossmember, Engine

1шт.

17

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

18

BN300500

WASHER,M12, 10.9

8шт.

20

43281

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

2шт.

21

BN318560

BRACKET

Turbo Tube

1шт.

22

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

2шт.

23

BN324263

MOUNTING PLATE

Mount, 535 Rear Eng

2шт.

24

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

25

100038

NUT,M12 x 1.75, Cl 8

4шт.

26

BN322925

WASHER

Washer, Rebound M20

2шт.

27

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

Выбрано товаров: 26
