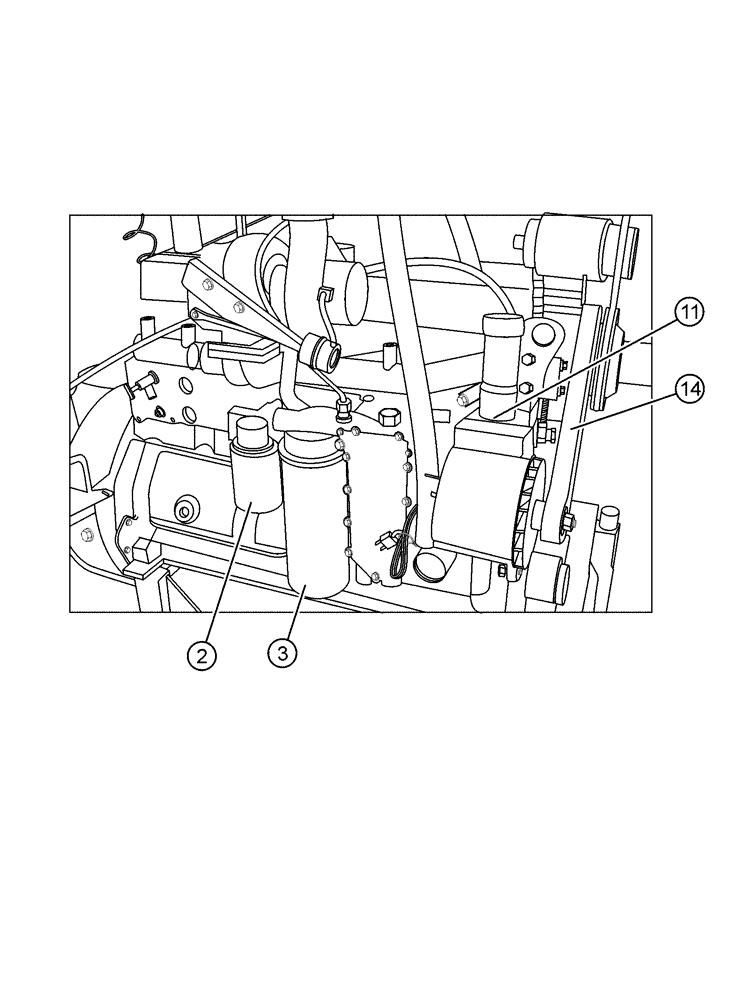

Запчасти Case IH FLX4375 (02-005[01]) - ENGINE, CASE 8.3L, 300HP (FLX4300) (01) - ENGINE

1

BN4010173

GEAR

Pump, Equilizer Injector

1шт.

2

J100307

ELEMENT

Water (Cdc)

1шт.

See Fig. 02-044

1шт.

3

J401544

FILTER, ELEMENT

ELEMENT, FILTER Lube Oil

1шт.

See Fig. 02-040

1шт.

4

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

1шт.

5

J905779

TUBE,9.52 mm OD x 228 mm L

Oil Gauge

1шт.

6

J914136

CAP

Filler

1шт.

7

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

Oil Fill

1шт.

See Fig. 02-047

1шт.

8

J918002

BANJO BOLT

Large

1шт.

9

J931059

GASKET

Cover Plate

1шт.

10

J937421

DIPSTICK

1шт.

See Fig. 02-084

1шт.

11

BN318826

Thermostat, Qsc

1шт.

See Fig. 02-004

1шт.

12

J943592

BANJO BOLT,M14 x 1.5 x 26mm

Banjo Bolt, Small

1шт.

13

J943670

FITTING

Orifice, 1/8

1шт.

14

J944840

V-BELT,27.92 mm W x 1988.60 mm L, 8 Ribs

Fan

1шт.

See Fig. 02-034

1шт.

15

J945066

PACKAGE,SERVICE

Filter, Fuel (Cdc)

1шт.

See Fig. 02-055

1шт.
