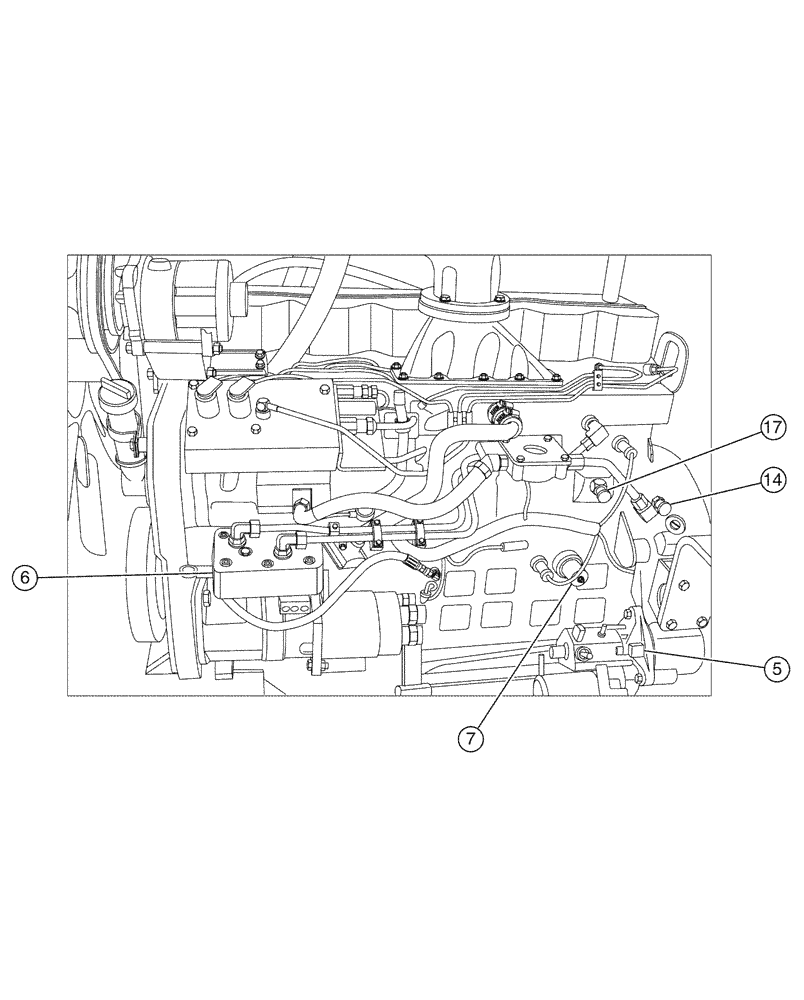

Запчасти Case IH FLX4375 (02-004[02]) - ENGINE GROUP (01) - ENGINE

1

BN2290298

BUSHING

0102-12-6

2шт.

2

BN2292249

HYDRAULIC VALVE

Heater Everhot

2шт.

3

BN2394965

TEMPERATURE SENDER

Temp 02025-00-1/2

1шт.

4

BN314865

Alternator Group, 300 CDC

1шт.

See Fig. 02-031

1шт.

5

BN314866

Starter Grp, 300 CDC

1шт.

See Fig. 02-032

1шт.

6

BN318784

Air Compressor Group

1шт.

6a

BN318785

Coolant Lines, Air Compressor

1шт.

Parts Of Air Compressor Group Assembly., P/N BN318784

1шт.

See Fig. 02-007

1шт.

6b

BN318786

Air Intake Tube, Air Compressor

1шт.

Parts Of Air Compressor Group Assembly., P/N BN318784

1шт.

See Fig. 02-008

1шт.

6c

BN318787

Air Compressor Assembly

1шт.

Parts Of Air Compressor Group Assembly., P/N BN318784

1шт.

See Fig. 02-009

1шт.

7

BN318816

SENDER UNIT

Oil Pressure

1шт.

Parts Of Air Compressor Group Assembly., P/N BN318784

1шт.

8

BN319006

Turbo Elbow Group

1шт.

8a

J008465

PLUG

1/8NPT, INT. Hex, Seal

2шт.

Parts Of Turbo Elbow Group Assembly., P/N BN319006

1шт.

8b

J883284

O-RING,0.07" Thk x 2.364" ID, -36

Seal

1шт.

Parts Of Turbo Elbow Group Assembly., P/N BN319006

1шт.

8c

J883977

ELBOW

Turbo X 4, 90 Degree

1шт.

Parts Of Turbo Elbow Group Assembly., P/N BN319006

1шт.

8d

J923041

SLOTTED NUT

1шт.

Parts Of Turbo Elbow Group Assembly., P/N BN319006

1шт.

8e

J923060

CLAMP,76.2mm

1шт.

Parts Of Turbo Elbow Group Assembly., P/N BN319006

1шт.

9

BN319293

O-RING

Plug, M22 Hex Head

1шт.

10

381813A1

Engine, Case 8.3L, 300HP

1шт.

See Fig. 02-005

1шт.

11

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

2шт.

12

BN321445

THERMOSTAT

300HP QSC MOD

1шт.

13

BN321949

PLATE

Hose Guard

1шт.

14

BN444008

FITTING

8MJ 10MB

1шт.

15

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

16

BN51499

8Fp-16Mp

1шт.

17

BN53594

FITTING

8Mj-8Mbx90

1шт.
