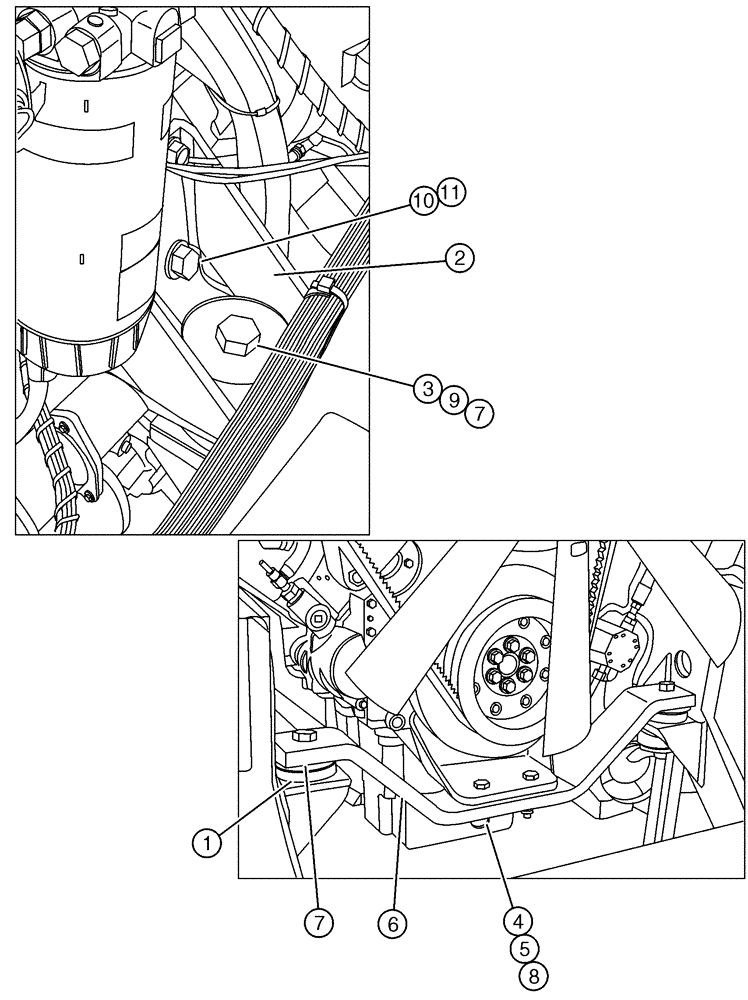

Запчасти Case IH FLX4375 (02-003) - ENGINE MOUNTING (FLX4375) (01) - ENGINE

1

BN300012

DAMPER

Vibration, Engine

4шт.

2

BN310944

MOUNTING PLATE

Rear Engine, REPTO

2шт.

3

86639172

BOLT,Hex, M22 x 140mm, Cl 10.9

4шт.

4

382101

BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8

2шт.

5

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

4шт.

6

BN301789

MOUNTING PLATE

Front Engine

1шт.

7

BN302284

WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk

Rebound, 3.88 od x .94 id x .25

8шт.

8

380424

NUT,M20 x 2.5, Cl 8

2шт.

9

87344025

NUT,Prev Torque, M22, 2.5 Pitch, Cl 10, DOR

4шт.

10

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

8шт.

11

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

8шт.
