(02-013) - ENGINE MOUNTING REAR (FLX 4300 JD6081 ENGINE)

Запчасти Case IH FLX4375 (02-013) - ENGINE MOUNTING REAR (FLX 4300 JD6081 ENGINE) (01) - ENGINE

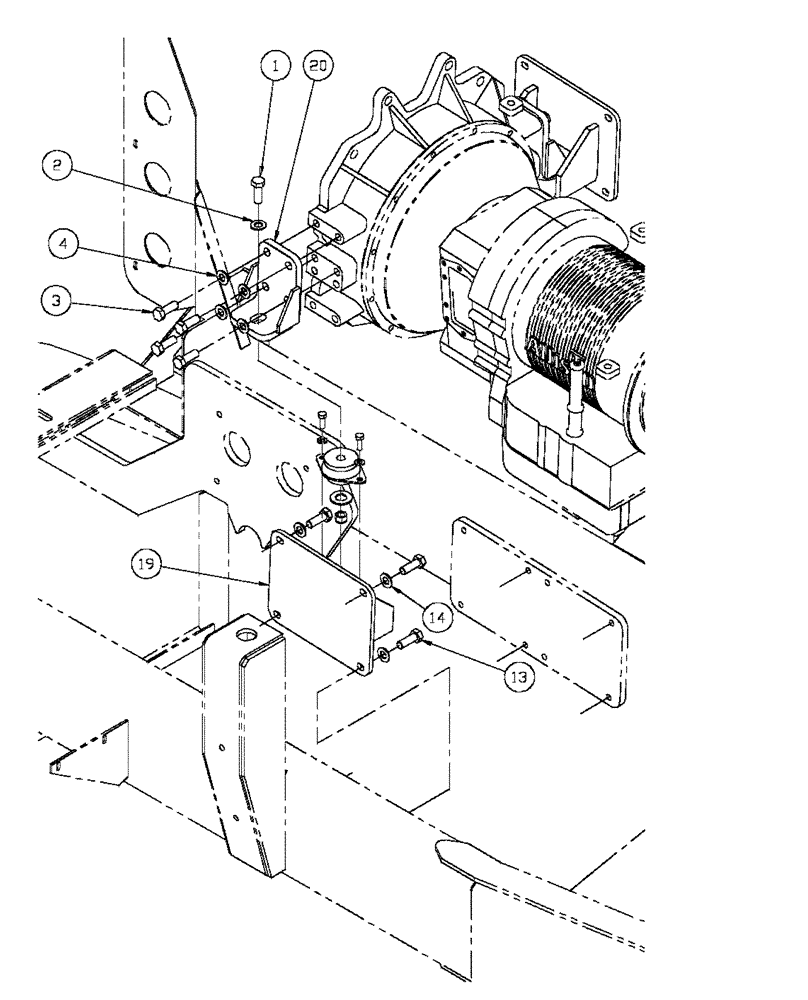

Схема запчастей Case IH FLX4375 - (02-013) - ENGINE MOUNTING REAR (FLX 4300 JD6081 ENGINE) (01) - ENGINE
2
3
14
19
1
13
20
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

3шт.

2

BN300501

WASHER

M16, FW, 10.9

3шт.

3

BN50897

BOLT

5/8-11 X 1.75, HH, G8

8шт.

4

BN247111

WASHER

5/8, G8

8шт.

13

BN300367

BOLT

1/2-20 X 1, HH, G8

16шт.

14

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

16шт.

19

BN306732

MOUNTING PLATE

Frame-Rear

2шт.

20

BN309795

BRACKET

Engine, Rear

2шт.
