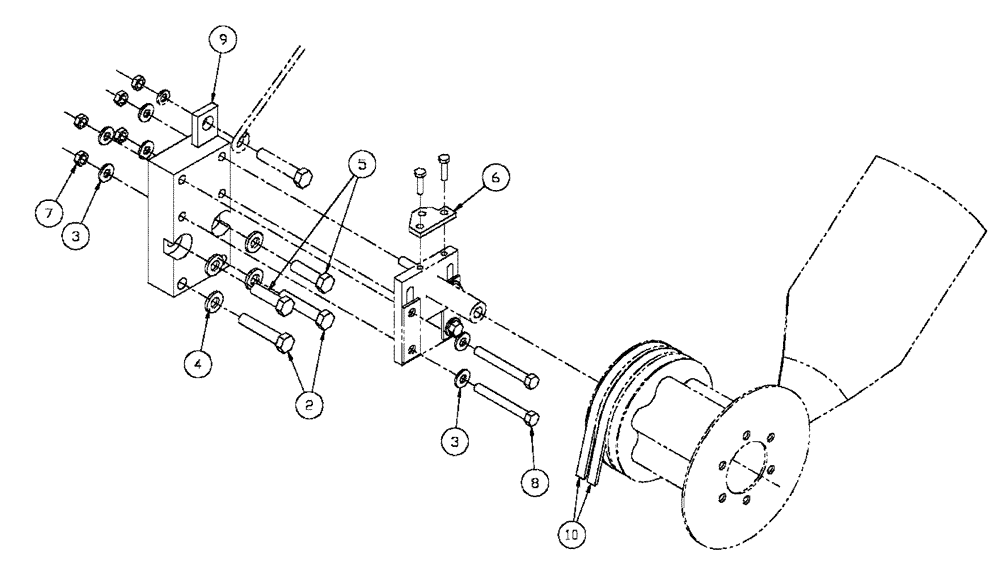

Запчасти Case IH FLX4375 (02-010) - FAN MOUNTING (FLX 4330 & FLX 4300 CAT ENGINE ONLY) (01) - ENGINE

2

BN1913378C

BOLT

1/2-13 X 2.5, HH, G8

2шт.

3

BN2292371

NUT

3/8, FW, G8

8шт.

4

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.

5

BN300169

SCREW,1/2" - 13 x 1 3/4"

1/2"-13 x 1.75, HH, G8

2шт.

6

BN303781

FAN

Tightener

1шт.

7

BN305104

FLANGE NUT

3/8-16, FLN, G8

4шт.

8

BN305441

SCREW,3/8" - 16 x 3 1/4", Gr 8

3/8-16 X 3.25, HH, G8

4шт.

9

BN311318

MOUNTING PLATE

Fan Relocate, 32

1шт.

10

BN311322

BELT,3208.00 mm L

Fan Drive

2шт.
