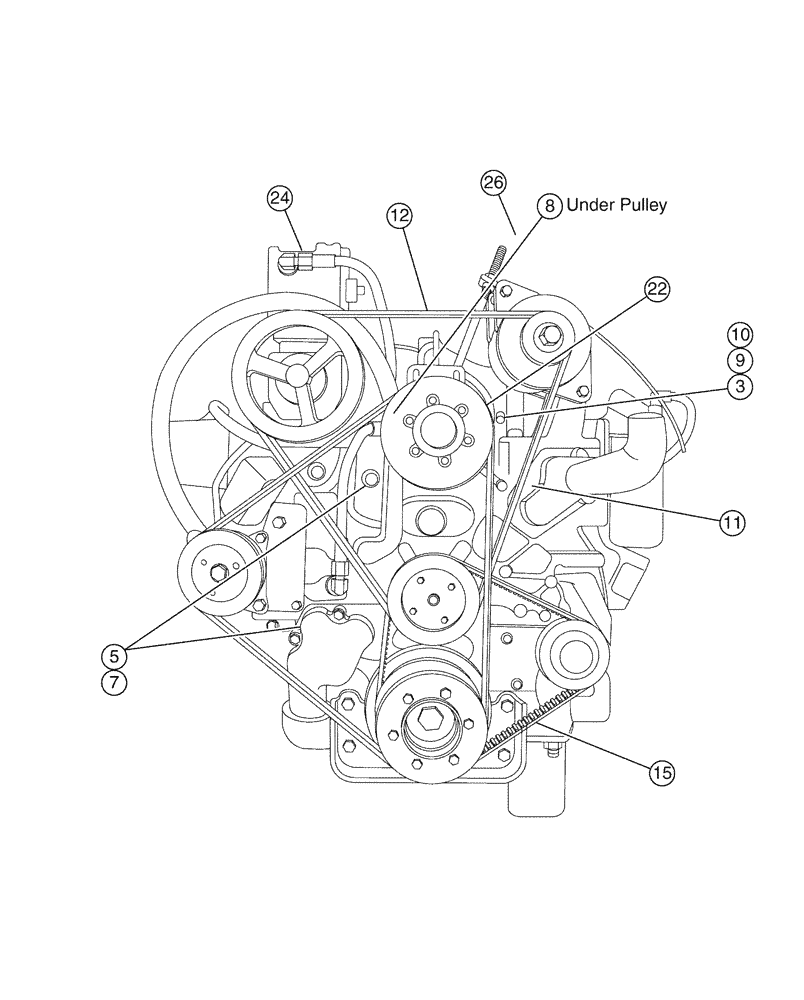

Запчасти Case IH FLX4375 (02-004[02]) - ENGINE GROUP (FLX 4330 CAT 3208T 330HP ENGINE) (01) - ENGINE

1

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

2шт.

2

BN2290173

FITTING

2103-4-6

1шт.

3

BN2290278

BUSHING

0102-6-2

1шт.

4

BN2290291

BUSHING

0102-4-2

1шт.

5

BN2290298

BUSHING

0102-12-6

2шт.

6

BN2292195

Cat 3208T 330Hp

1шт.

7

BN2292249

HYDRAULIC VALVE

Heater Everhot

2шт.

8

BN51674

HOSE CLAMP

Adjustable #40

1шт.

9

BN2293521

FITTING

2102-6-6

1шт.

10

BN2293687

FITTING

744240

1шт.

11

BN2394965

TEMPERATURE SENDER

1шт.

12

BN2396287

V-BELT

Alternator, Air Compressor

2шт.

13

BN2396570

FAN

8-Blade 26"/3208

1шт.

14

BN2399638

FITTING

4MP-4FP

1шт.

15

BN2400295

BELT

2шт.

16

BN2401945

SENDER UNIT

Tach 71255

1шт.

17

BN2404997

PRESSURE SWITCH

N.O.

1шт.

18

BN300175

WASHER

3/8", G8

6шт.

19

BN303492

SPACER

330, Cat

1шт.

20

NSS

NOT SOLD SEPARAT

Throttle

1шт.

See Fig. 02-008

1шт.

21

BN311366

SENDER UNIT

Oil, Servere HD

1шт.

22

BN312521

1шт.

23

NSS

NOT SOLD SEPARAT

Compressor, Pneumatic, 3208

1шт.

See Fig. 07-003

1шт.

24

NSS

NOT SOLD SEPARAT

Compresser AC

1шт.

See Fig. 01-007

1шт.

25

BN50274

BOLT

3/8-16 X 2.75 (Cat)

6шт.

26

BN2292194-008

Pulley Adjustment Alternator

1шт.

27

BN2292194-010

PIPE CLAMP

Turbo 3208 9N2039

1шт.

BN2396838

HEATER

Water (3208) 120V

1шт.

Not Shown

1шт.
