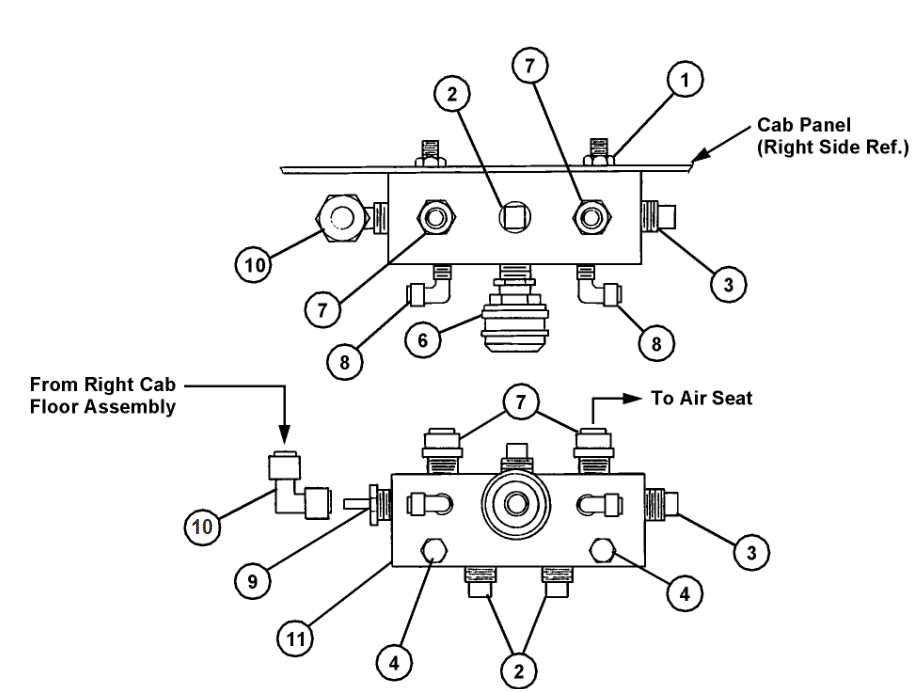

Запчасти Case IH FLX4375 (07-013) - AIR MANIFOLD ASSEMBLY Pneumatics

1

BN1470402C

FLANGE NUT

NC 1/4-20 Flex Lock

2шт.

2

BN1666253

PLUG

Pipe 1/4 Sq. Hd.

3шт.

3

BN1666255

Pipe 3/8 SQ. HD.

1шт.

4

BN1913353C

HH 1/4-20 X 2 NC

2шт.

5

BN2292088

AIR INTAKE TUBE

3/8" Black

6шт.

Not Shown

1шт.

6

BN2393326

COUPLING

B32

1шт.

7

BN2399401

ADAPTER

Male, 1/4" Tube

2шт.

8

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

9

BN2399407

PIPE FITTING

Connector, Tube MT38038

1шт.

10

BN2399410

HYD CONNECTOR

Tube ULC380

1шт.

11

BN6092020

Air

1шт.
