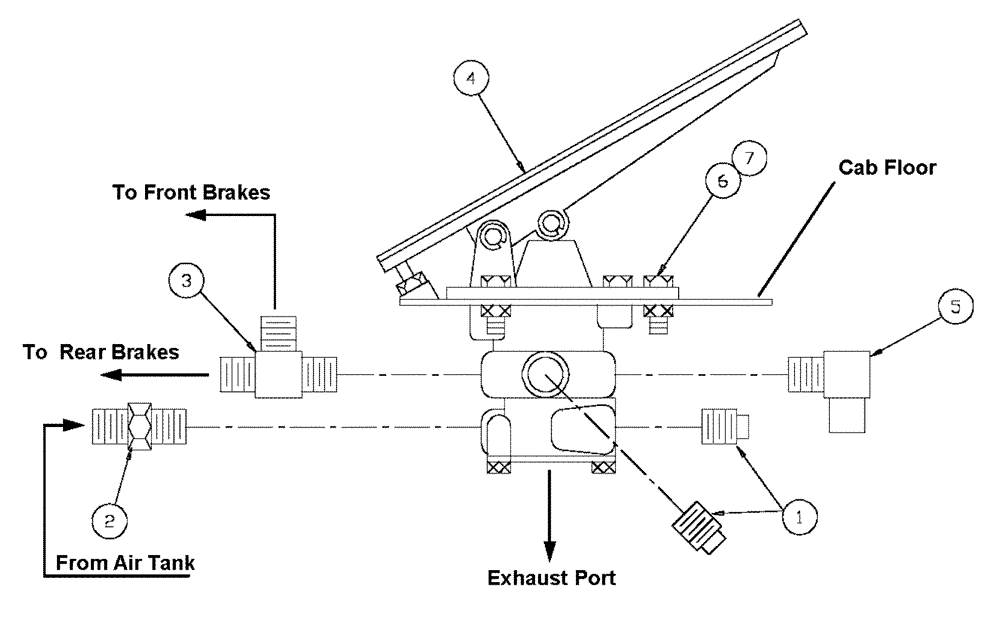

Запчасти Case IH FLX4375 (07-005) - BRAKE PEDAL VALVE GROUP Pneumatics

BN306848

BRAKE VALVE

Brake Pedal Valve

1шт.

Includes Refs. 1 - 5

1шт.

1

BN1666161

PLUG

Allen Head 1/2

2шт.

Part of Brake Pedal Valve, P/N 306848

1шт.

2

BN2290182

FITTING

0103-8-8S

1шт.

Part of Brake Pedal Valve, P/N 306848

1шт.

3

BN2292074

FITTING

8-8-8 RTX-S

1шт.

Part of Brake Pedal Valve, P/N 306848

1шт.

4

BN2298277

HYDRAULIC VALVE

Treadle WM 472D

1шт.

Part of Brake Pedal Valve, P/N 306848

1шт.

5

BN2400668

FITTING

2089-8-6

1шт.

Part of Brake Pedal Valve, P/N 306848

1шт.

6

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

7

BN304315

NUT

M8-1.25, FLN, 10.9

3шт.
