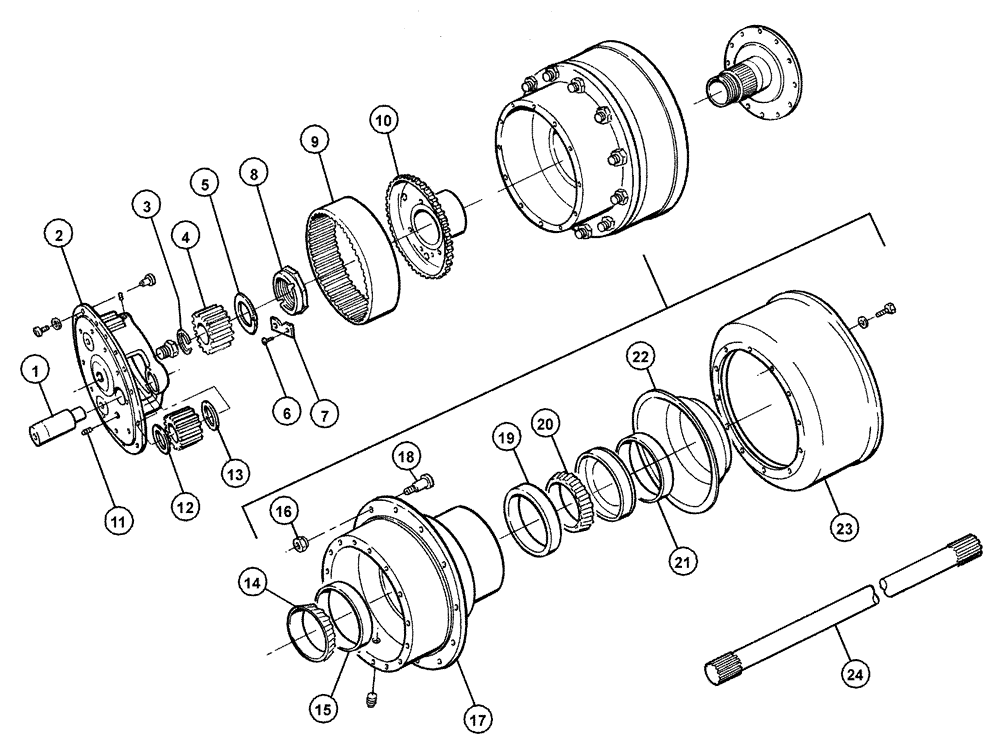

Запчасти Case IH FLX4375 (04-010) - REAR AXLE HUB Frame & Suspension

1

BN2390129-030

SHAFT

Planetary, Pinion

1шт.

2

BN2390129-019

PINION

Planetary, 30B

1шт.

2

BN2393107-002

PINION

Planetary, 16B

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN2390129-038

SNAP RING

Axle Shaft Retaining

1шт.

4

BN2390129-028

SUN GEAR

Planetary 20T

1шт.

5

BN2390129-037

WASHER

Flange Tm Sun Gear

1шт.

6

BN2390129-031

SCREW

Wheel Bearing Nut LK

1шт.

7

BN2390129-032

BEARING LOCK NUT

Wheel Bearing

1шт.

8

87266619

BEARING LOCK NUT

Wheel Bearing

1шт.

9

BN2390129-029

PLANETARY GEAR

Ring 52T

1шт.

10

BN2390129-039

HUB

Planetary Ring Gear

1шт.

11

BN2390129-035

PLUG

Magnetic, 3/4" NPT

1шт.

12

BN2390129-033

THRUST WASHER

Outer

1шт.

13

BN2390129-015

THRUST WASHER

Inner Pinion

1шт.

14

BN2390129-011

ROLLER BEARING,117.47mm ID x 31.75mm W

Hub Outer, Timkin 68462

1шт.

15

BN2390129-012

BEARING CUP

Hub Outer

1шт.

16

BN2291498

WHEEL NUT

Wheel

1шт.

17

BN2390129-040

CUP

And Hub, 30 Bolt

1шт.

17

BN2390129-036

HUB CARRIER

16 Bolt, With Race

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

18

BN2394948

STUD,3/4" - 16 x 2-3/4", , Gr 8

Wheel

1шт.

19

BN2390129-014

BEARING CUP

Hub Inner

1шт.

20

BN2390129-013

ROLLER BEARING

Hub Inner

1шт.

21

BN2394941

SEAL

Oil, Wheel Bearing

1шт.

22

BN2390129-043

SLINGER

Oil 3905-A-53

1шт.

23

BN2390129-021

BRAKE DRUM

Axle

1шт.

24

BN2390129-005

HALF SHAFT

Axle - Short x 49.83" (Curbside)

1шт.

24

BN2390129-006

HALF SHAFT

Axle - Long x 53.71" (Roadside)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

9635076

BOLT

Brake Drum To Hub, 3/4 - 10 X 2 GR 8 (Shown to Right of Ref.23)

12шт.

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

Shown to Right of Ref. 23

12шт.
