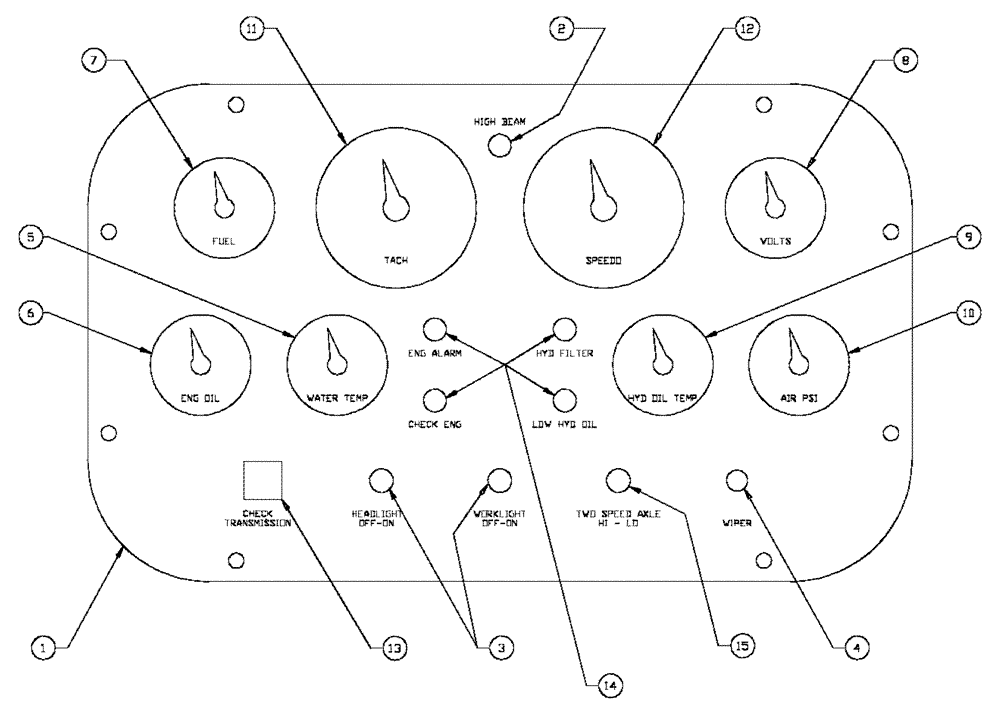

Запчасти Case IH FLX4375 (01-001) - DASH CONTROLS (10) - CAB

BN304541

Left, Assembled

1шт.

1

BN304540

DASH PANEL

Left

1шт.

BN55383

BOLT

1/4-20 X 1/2 BSH 2

8шт.

Associated Part Of Left Dash Panel, P/N 304540

1шт.

BN310650

DECAL

Left Dash

1шт.

Associated Part Of Left Dash Panel, P/N 304540

1шт.

2

BN2291214

INDICATOR LIGHT

Blue

1шт.

3

BN2291956

SWITCH

Cutler Hammer

2шт.

4

BN2294958

SWITCH

Windshield Wiper

1шт.

5

BN2296730

GAUGE

Water Temp "Smart"

1шт.

6

BN2296754

OIL PRESSURE GAUGE

"Smart"

1шт.

7

BN2296752

FUEL GAUGE

1шт.

8

BN2296753

GAUGE

Voltmeter

1шт.

9

BN315188

GAUGE

Oil Temp

1шт.

10

BN2390774

GAUGE

Air Pressure 0-150

1шт.

BN2290525

FITTING

VS68AB-4-2

1шт.

Associated Part Of Gauge, P/N 2390774

1шт.

11

86636599

TACHOMETER

3.38 x 3K With Hourmeter

1шт.

12

BN304524

SPEEDOMETER

3.38 X 80Mph W/OD

1шт.

13

BN2293217

BUZZER

1шт.

14

BN2291234

INDICATOR LIGHT

Red

4шт.

15

NSS

NOT SOLD SEPARAT

2-Speed Shift Circuit Switch

1шт.

See Fig. 07-006

1шт.

BN2394623

PLUG

Dash 1/2" #2643

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

16

BN2290270

BULB

330

1шт.

Not Shown

1шт.

BN304571

WIRE HARNESS

Left Dash (B2F)

1шт.

Not Shown (Under Dash)

1шт.

BN304572

WIRE HARNESS

Lights (B1F)

1шт.

Not Shown (Under Dash)

1шт.

BN304573

WIRE HARNESS

Wiper (B8F)

1шт.

Not Shown (Under Dash)

1шт.

BN304574

WIRE HARNESS

Left Dash Gnd

1шт.

Not Shown (Under Dash)

1шт.

BN304575

WIRE HARNESS

Left Dash W-Lights

1шт.

Not Shown (Under Dash)

1шт.

BN304705

WIRE HARNESS

Left Dash Lights

1шт.

Not Shown (Under Dash)

1шт.
