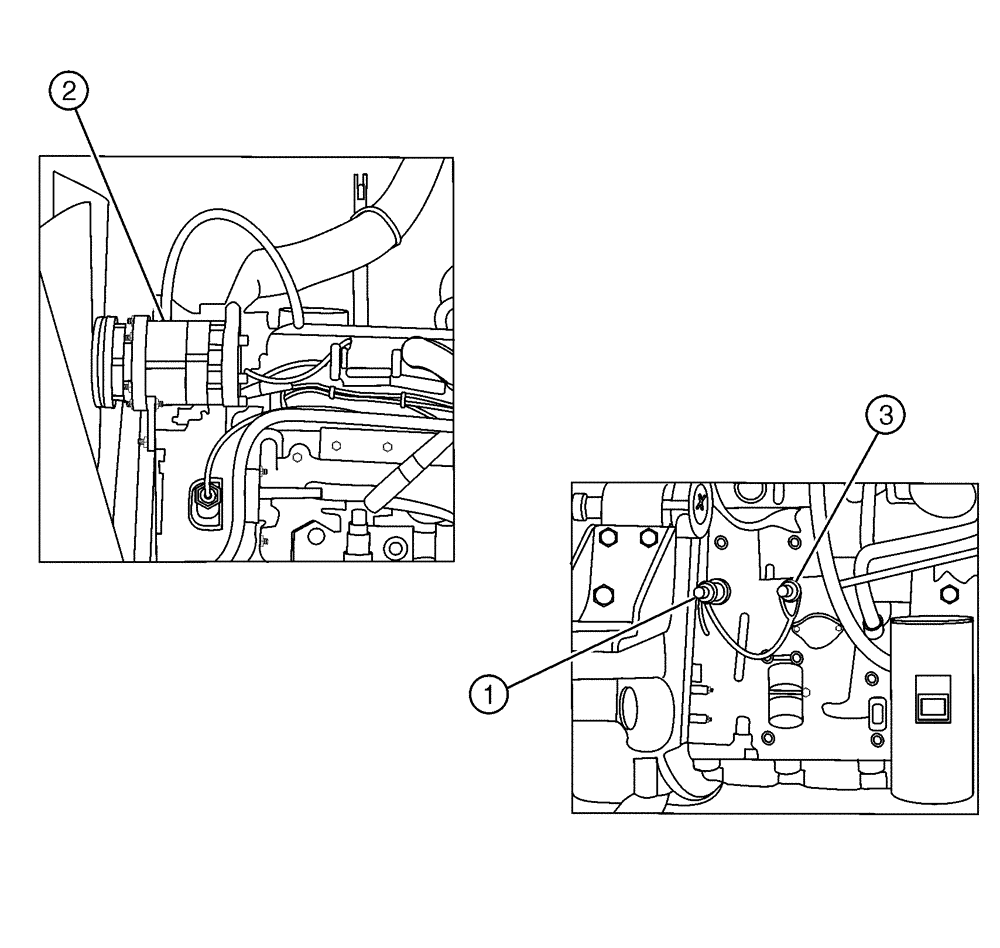

Запчасти Case IH FLX4375 (08-001[01]) - ENGINE ELECTRICAL (06) - ELECTRICAL

1

BN311366

SENDER UNIT

Oil Servere HD

1шт.

2

BN2394965

TEMPERATURE SENDER

1шт.

3

BN2404997

PRESSURE SWITCH

Pressure N.O.

1шт.

4

NSS

NOT SOLD SEPARAT

Harness, Engine Interface

1шт.

See Fig. 08-002

1шт.

5

BN307096

ELECTRIC CABLE

Battery, 15" Pos

1шт.

6

BN307097

CABLE

Battery, 15" Neg

1шт.

7

BN307098

ELECTRIC CABLE

Battery, 29" Pos

1шт.

FLX4375 & FLX4300 W/JD Engine

1шт.

7

BN312559

ELECTRIC CABLE

1/0 (+), 74"

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

FLX4300, FLX4330 With Cat Engine

1шт.

8

BN307099

CABLE

Battery, 32" Neg

1шт.

FLX4375 & FLX4300 W/JD Engine

1шт.

8

BN312560

ELECTRIC CABLE

1/0 (-), 74"

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

FLX4300, FLX4330 With Cat Engine

1шт.

9

BN307100

CABLE

Ground, Starter To Frame

1шт.

10

BN307101

CABLE

Ground, Cab To Frame

1шт.

11

BN307135

CABLE

Ground, Engine To Frame

1шт.
