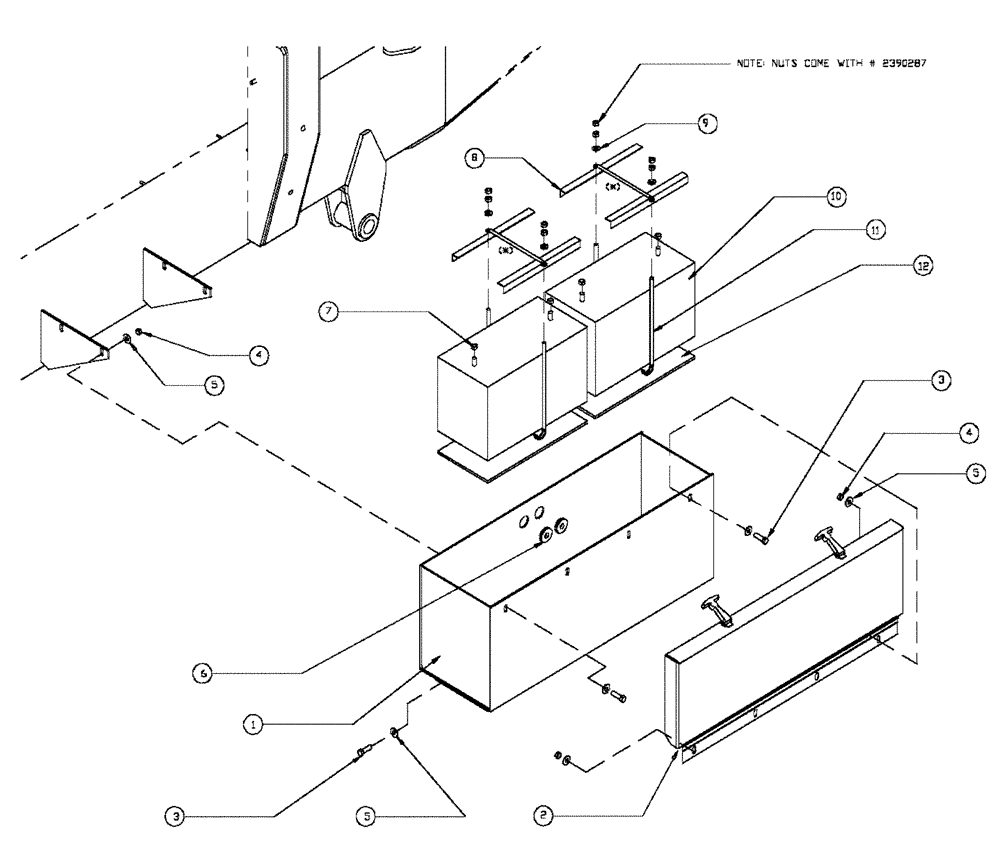

Запчасти Case IH FLX4375 (02-039) - BATTERY GROUP (01) - ENGINE

1

BN300069

BOX

Battery

1шт.

2

BN301793

LID

Battery Box

1шт.

3

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

10шт.

4

BN304419

NUT

M10-1.5, NLN, 10.9

10шт.

5

BN300499

WASHER,M10, 10.9

20шт.

6

BN2290753

GROMMET

2870 (7/8" Hole)

2шт.

7

BN50061

LOCK NUT

3/8"-16, G5

4шт.

8

BN320331

BRACKET

Mount, Battery

2шт.

9

BN50141

WASHER

5/16, FW, G5

4шт.

10

BN300091

BATTERY

12V DC, 950 CCA

2шт.

11

BN2390287

BOLT

battery 390-005

4шт.

12

BN7140027

PAD

battery

2шт.
