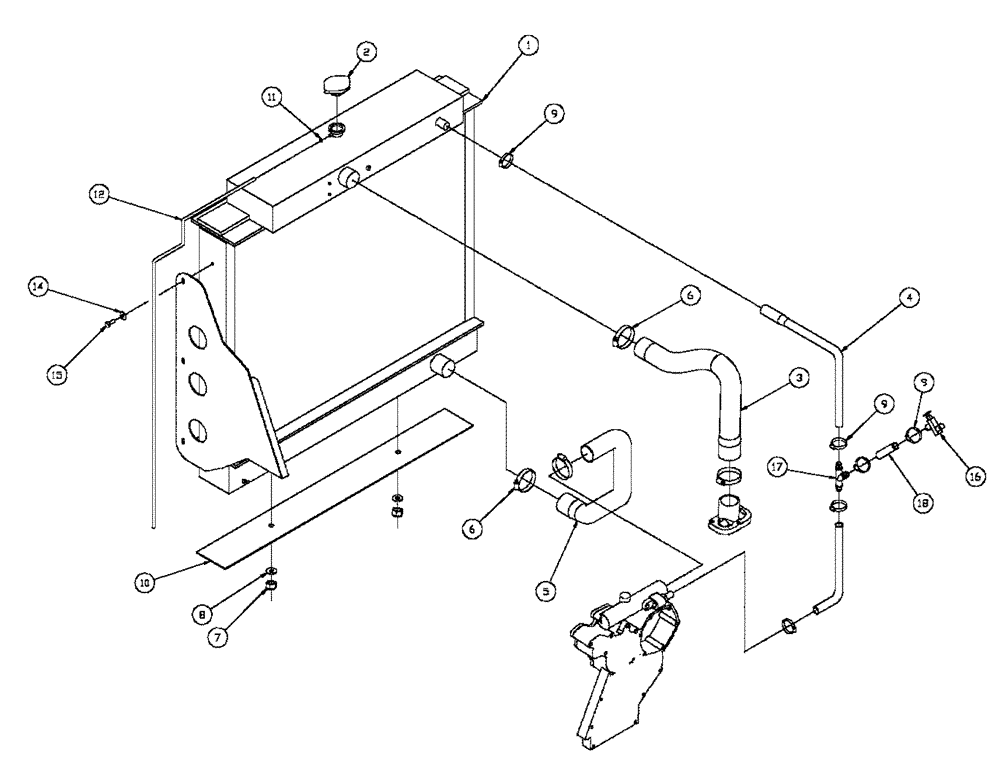

Запчасти Case IH FLX4375 (02-034) - RADIATOR GROUP (FLX 4300 JD ENGINE) (01) - ENGINE

1

BN305716

RADIATOR

41 X 33

1шт.

2

BN305358

CAP

Radiator 16 #SAE SML

1шт.

3

BN307093

RADIATOR HOSE,2.25" ID, 2.50" ID x 12.60" , SAE 20R4

Radiator, Upper

1шт.

4

BN307747

HOSE

Deaeration, 4300 JD

1шт.

5

BN302683

HOSE,2.00" ID, 2.25" ID x 15.41", SAE 20R4

Inlet

1шт.

6

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

4шт.

7

BN300410

BOLT

M16-2, FLN, 8.8

2шт.

8

BN300492

WASHER

M16, FW, G5

2шт.

9

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

6шт.

10

BN311804

PAD

Radiator, Neoprene

1шт.

11

BN76094

HOSE CLAMP

SS #M4

1шт.

12

BN306821

HOSE,0.75" ID, Bulk

5шт.

14

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

6шт.

15

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

6шт.

16

BN303666

VALVE

Shut Off

1шт.

17

BN312103

PIPE FITTING

5/8 & 3/4, JD Eng

1шт.

18

BN53978

HOSE

5/8" ID

1шт.
