(02-029) - AIR EXHAUST GROUP (FLX 4300 JD ENGINE)

Запчасти Case IH FLX4375 (02-029) - AIR EXHAUST GROUP (FLX 4300 JD ENGINE) (01) - ENGINE

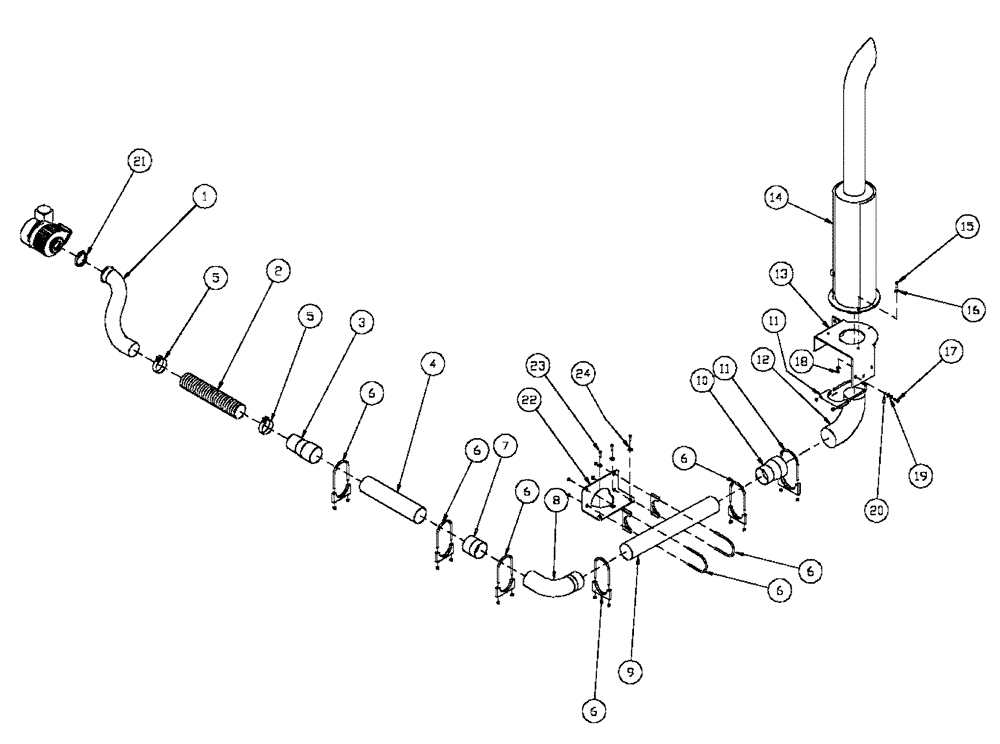

Схема запчастей Case IH FLX4375 - (02-029) - AIR EXHAUST GROUP (FLX 4300 JD ENGINE) (01) - ENGINE
8
7
3
22
20
21
6
16
2
6
1
24
9
17
6
5
6
12
13
4
10
6
14
11
6
19
15
18
5
6
11
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN310975

EXHAUST SYSTEM PIPE

1шт.

2

BN309540

HOSE

Exhaust, 3.5"

1шт.

3

BN303461

REDUCER FITTING

4 X 3.5

1шт.

4

BN310957

TUBE

Exhaust, 4DIA, 16.5 L

1шт.

5

BN303469

PIPE CLAMP

Muffler, 3.5"

2шт.

6

BN25927

CLAMP,104.8mm ID

4" Muffler

7шт.

7

BN2393092

TUBE

AP14603 4"

1шт.

8

BN2296557

ELBOW

8681 90 4" 8" X 8"

1шт.

9

BN310956

TUBE

Exhaust, 4 DIA, 36 L

1шт.

10

BN303462

REDUCER FITTING

5 X 4, O.D., I.D.

1шт.

11

BN306386

CLAMP,129.5mm ID

Muffler 5"

2шт.

12

BN310955

ELBOW

Exhaust, 90, 5-5-O.D.

1шт.

13

BN304531

BRACKET

Muffler

1шт.

14

NSS

NOT SOLD SEPARAT

Muffler Assy, 14-1800 CFM

1шт.

See Fig. 02-031

1шт.

15

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

16

BN300499

WASHER,M10, 10.9

6шт.

17

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

5шт.

18

BN300393

NUT

M10-1.5, FLN, 10.9

5шт.

19

BN300500

WASHER,M12, 10.9

10шт.

20

BN304551

SCREW

M12-1.75, FLN, 10.9

5шт.

21

BN304732

CLAMP

Turbo Exhaust

1шт.

22

BN311199

SUPPORT

Exhaust Pipe

1шт.

23

BN300367

BOLT

1/2-20 X 1, HH, G8

3шт.

24

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

3шт.
