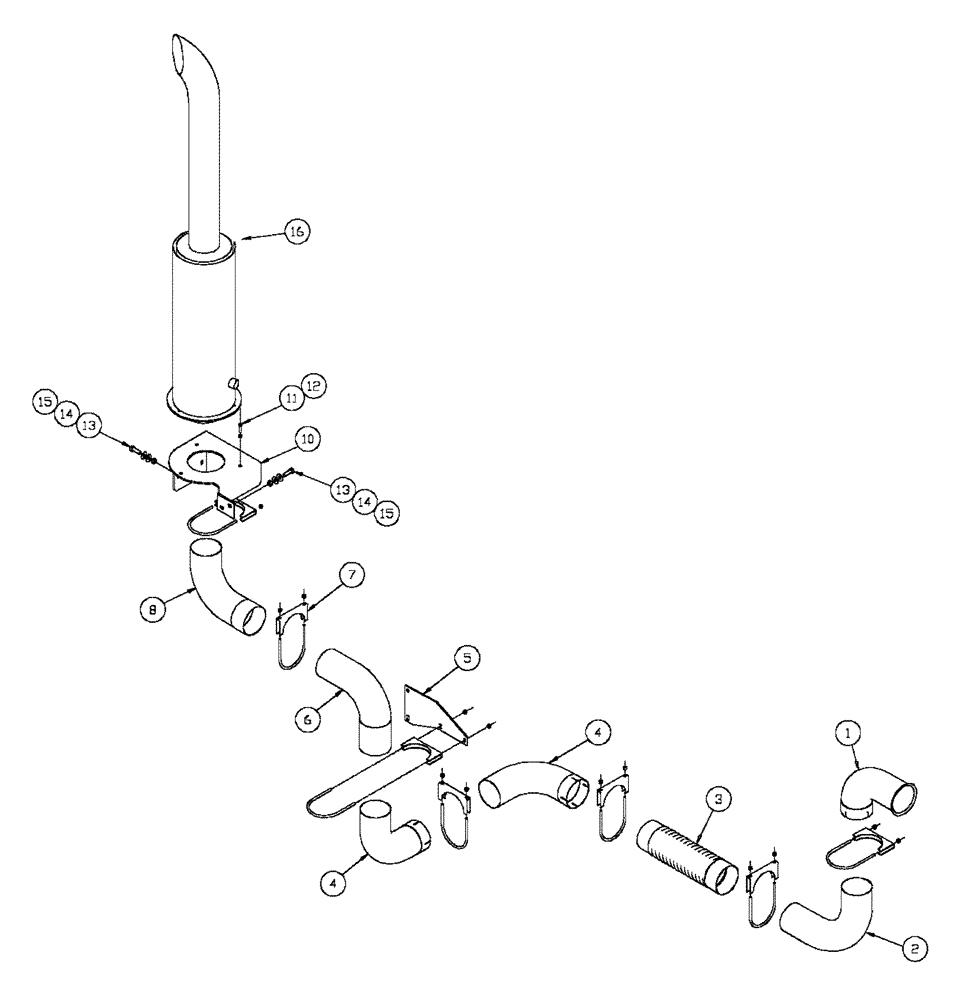

Запчасти Case IH FLX4375 (02-027) - AIR EXHAUST GROUP (FLX 4375) (01) - ENGINE

1

BN309766

ELBOW

Large Turbo Flange

1шт.

2

BN309346

ELBOW

Exhaust, Mod.

1шт.

3

BN303456

FLEXIBLE HOSE,18.00"

1шт.

4

BN303525

ELBOW

90 5" ID, OD

2шт.

5

BN310135

BRACKET

Mount, 5" Exhaust

1шт.

6

BN303454

ELBOW

90, 5" ID, OD

1шт.

7

BN306386

CLAMP,129.5mm ID

Muffler 5"

7шт.

8

BN310218

ELBOW

5" Exhaust Mod.

1шт.

10

BN304531

BRACKET

Muffler

1шт.

11

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

12

BN300393

NUT

M10-1.5, FLN, 10.9

3шт.

13

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

5шт.

14

BN300500

WASHER,M12, 10.9

10шт.

15

BN304551

SCREW

M12-1.75, FLN, 10.9

5шт.

16

NSS

NOT SOLD SEPARAT

18-2450 CFM

1шт.

See Fig. 02-030

1шт.
