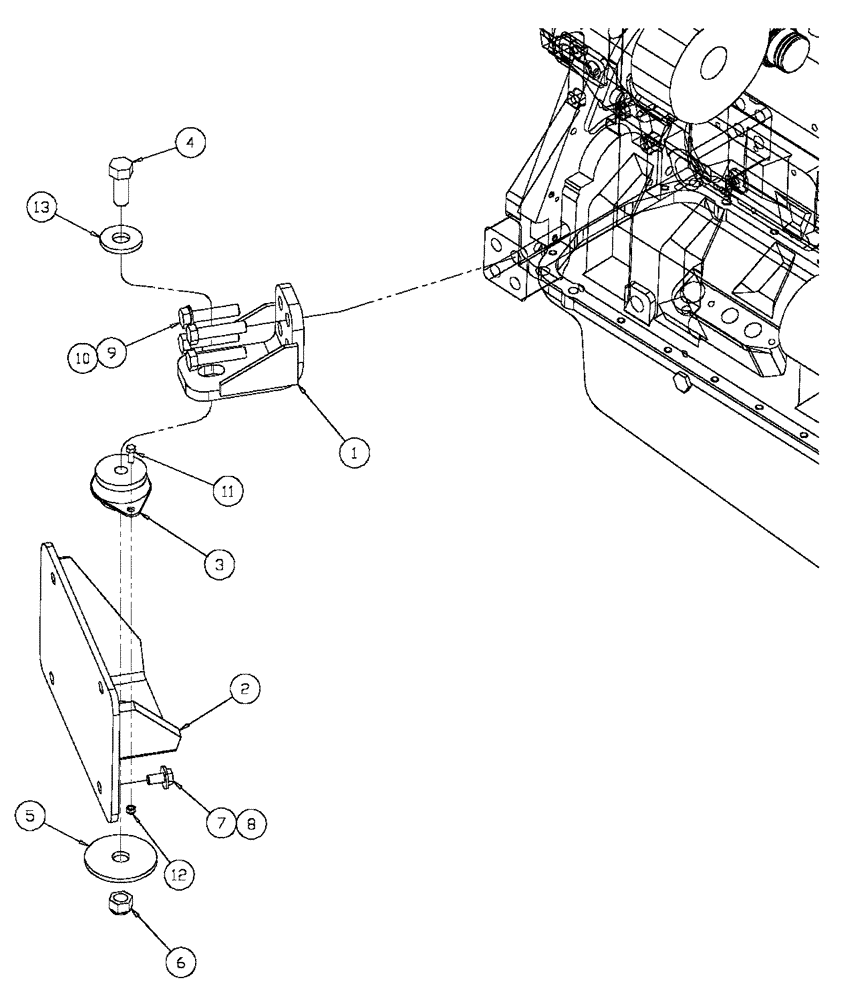

Запчасти Case IH FLX4330 (02-012) - ENGINE MOUNTING FRONT (FLX 4300 JD6081 ENGINE) (01) - ENGINE

1

BN309796

BRACKET

Engine, Front

2шт.

2

BN306737

MOUNTING PLATE

Frame-Front

2шт.

3

BN306728

ENGINE MOUNT

2шт.

4

BN302771

M16-2.5 X 80, HH, 10.9

2шт.

5

BN308164

WASHER

Rebound

2шт.

6

832-46416

NUT,M16 x 2, Cl 8

2шт.

7

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

Apply .1 ML of Loctite #271 to the Threads

1шт.

8

BN300367

BOLT

1/2-20 X 1, HH, G8

8шт.

9

BN247111

WASHER

5/8, G8

16шт.

Apply .1 ML of Loctite #271 to the Threads

1шт.

10

BN50882

5/8-11 X 2.75, HH, G8

8шт.

11

BN300390

BOLT

M10-1.5 X 30, HH, 8.8

4шт.

12

BN304419

NUT

M10-1.5, NLN, 10.9

4шт.

13

BN300501

WASHER

M16, FW, 10.9

2шт.
