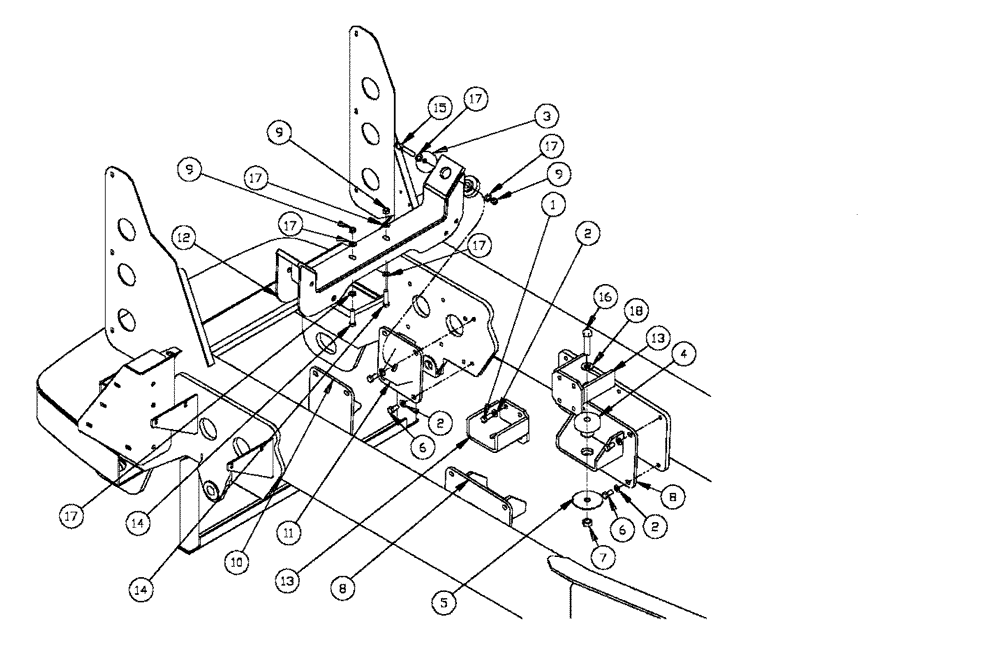

Запчасти Case IH FLX4330 (02-007) - ENGINE MOUNTING (FLX 4330 & FLX 4300 CAT ENGINE ONLY) (01) - ENGINE

1

BN1913329C

HH 1/2-13 X 1-1/4 N

8шт.

Apply Primer to the Threads of Bolt and the Corresponding Tapped Holes and Allow to Dry

1шт.

Apply Loctite to the Threads of the Bolt and Tapped, Holes, Assemble

1шт.

2

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

24шт.

3

BN2297361

KIT

Lord SSB26-1000-1

2шт.

4

BN2297362

ENGINE MOUNT

Lord CBA33-1200

2шт.

5

BN2392312

WASHER

Lord Mount

2шт.

6

BN300367

BOLT

1/2-20 X 1, HH, G8

16шт.

Apply Primer to the Threads of Bolt and the Corresponding Tapped Holes and Allow to Dry

1шт.

Apply Loctite to the Threads of the Bolt and Tapped, Holes, Assemble

1шт.

Torque to 55 Ft-Lbs ± 5 Ft-Lbs

1шт.

7

BN300415

BOLT

M18-2.5, FLN, 8.8

2шт.

8

BN304249

ENGINE MOUNT

Rear

2шт.

10

BN310303

ENGINE MOUNT

RS Front

1шт.

11

BN310302

ENGINE MOUNT

CS Front

1шт.

12

BN7146201

CROSSMEMBER

Engine-Front

1шт.

13

BN7146202

MOUNTING PLATE

Engine-Rear

2шт.

14

BN302747

BOLT

M12-1.75 X 50, HH, 10.9

2шт.

15

412605

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

Torque to 55 Ft-Lbs ± 5 Ft-Lbs

1шт.

16

814-18100

BOLT,Hex, M18 x 2.5 x 100mm, Cl 8.8

M18-2.5 X 100, HH, 10.9, 2ND

2шт.

Torque to 195 Ft-Lbs ± 10 Ft-Lbs

1шт.

17

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

18

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.
