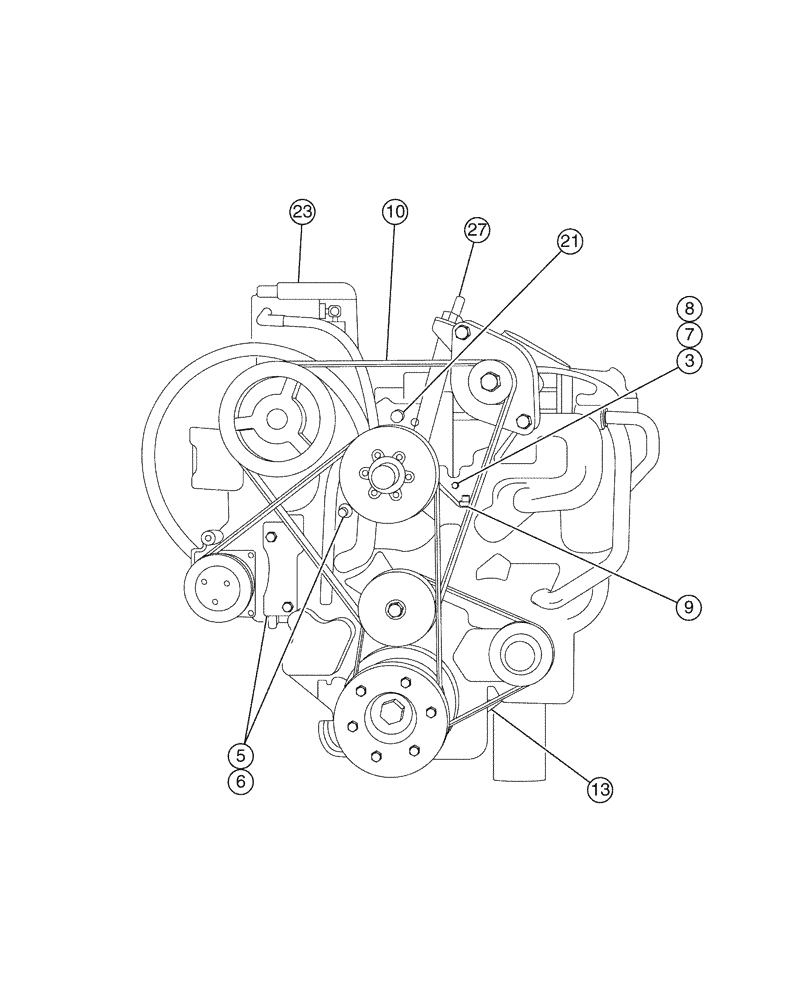

Запчасти Case IH FLX4330 (02-005[02]) - ENGINE GROUP (FLX 4300 CAT 3208 300HP ENGINE) (01) - ENGINE

1

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

2шт.

2

BN2290173

FITTING

2103-4-6

1шт.

3

BN2290278

BUSHING

0102-6-2

1шт.

4

BN2290291

BUSHING

0102-4-2

1шт.

5

BN2290298

BUSHING

0102-12-6

2шт.

6

BN2292249

HYDRAULIC VALVE

Heater Everhot

2шт.

7

BN2293521

FITTING

2102-6-6

1шт.

8

BN2293687

FITTING

744240

1шт.

9

BN2394965

TEMPERATURE SENDER

1шт.

10

BN2396287

V-BELT

Alternator, Air Compressor

2шт.

11

BN2396570

FAN

8-Blade 26"/3208

1шт.

12

BN2399638

FITTING

4MP-4FP

1шт.

13

BN2400295

BELT

2шт.

14

BN2401945

SENDER UNIT

Tach 71255

1шт.

15

BN2404997

PRESSURE SWITCH

N.O.

1шт.

16

BN300175

WASHER

3/8", G8

6шт.

17

NSS

NOT SOLD SEPARAT

330, Cat

1шт.

See Fig. 02-008

1шт.

18

BN305703

Throttle

1шт.

19

BN304247

Engine, Cat 3208 300 JWAC

1шт.

20

BN311366

SENDER UNIT

Oil, Servere HD

1шт.

21

BN312521

1шт.

22

NSS

NOT SOLD SEPARAT

Compressor, Pneumatic, 3208

1шт.

See Fig. 07-003

1шт.

23

NSS

NOT SOLD SEPARAT

Compresser AC

1шт.

See Fig. 01-007

1шт.

24

BN50274

BOLT

3/8-16 X 2.75 (Cat)

6шт.

25

BN72028

ELBOW

1/8 x 90º street

1шт.

26

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

27

BN2292194-008

Pulley Adjustment Alternator

1шт.

28

BN2292194-010

PIPE CLAMP

Turbo 3208 9N2039

1шт.
