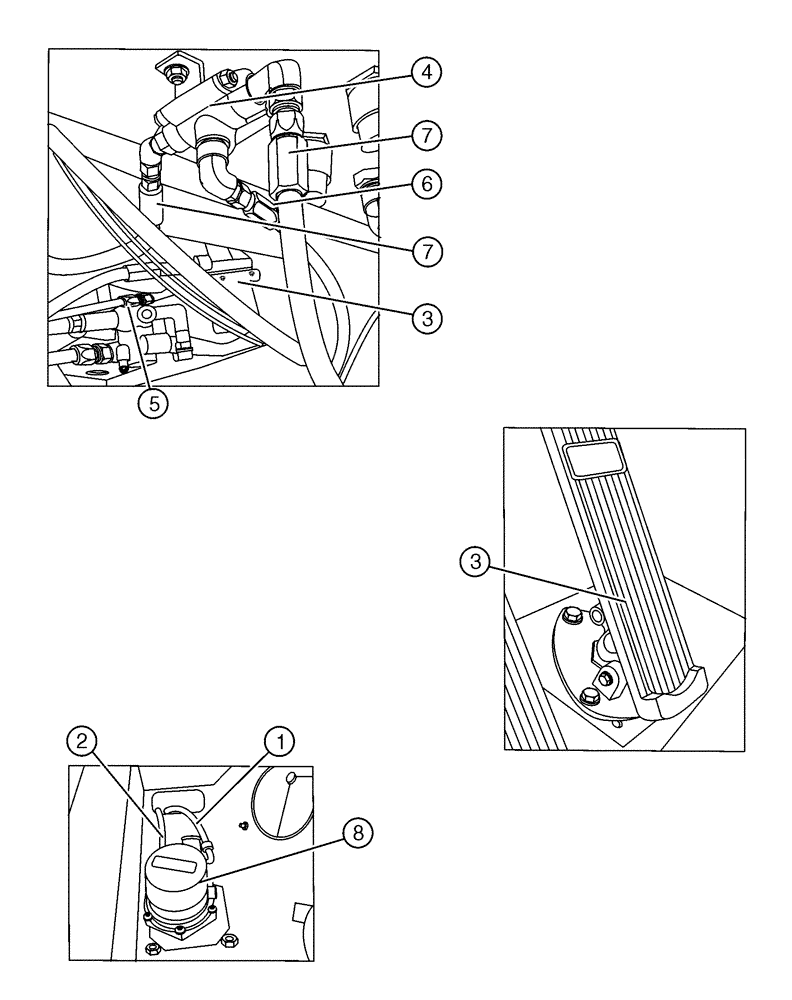

Запчасти Case IH FLX4330 (07-015) - FOOT THROTTLE GROUP (ALL ENGINES) Pneumatics

1

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

2

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

8.5шт.

3

BN300040

THROTTLE

Elec, PWM

1шт.

JD6081 Engine Only

1шт.

3

BN302305

THROTTLE

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

Cat 3176 Engine

1шт.

3

BN305695

THROTTLE

Air

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

Cat 3208 Engine

1шт.

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

Associated Part Of Air Throttle Pedal, P/N BN305695

1шт.

BN304315

NUT

M8-1.25, FLN, 10.9

3шт.

Associated Part Of Air Throttle Pedal, P/N BN305695

1шт.

BN304583

MODULE

Tvp Module

1шт.

Not Shown

1шт.

4

BN305696

HYDRAULIC VALVE

Shuttle

1шт.

BN305724

Pneumatic

1шт.

Includes Refs. 5 - 7

1шт.

5

BN310205

HOSE

#4 JIC FEM -69" 4 Wheel

1шт.

From Air Divider To Throttle Pedal

1шт.

6

BN310206

AIR HOSE

#4 JIC FEM - 74"

1шт.

Shuttle Valve To Air Cylinder

1шт.

7

BN310207

AIR HOSE,20.00"

#4 JIC Female

2шт.

Foot Throttle To Shuttle Valve

1шт.

8

NSS

NOT SOLD SEPARAT

Hand Throttle

1шт.

See Fig. 07-017

1шт.

NSS

NOT SOLD SEPARAT

R/H Cab (Resume)

1шт.

Not Shown

1шт.

See Fig. 07-016

1шт.
