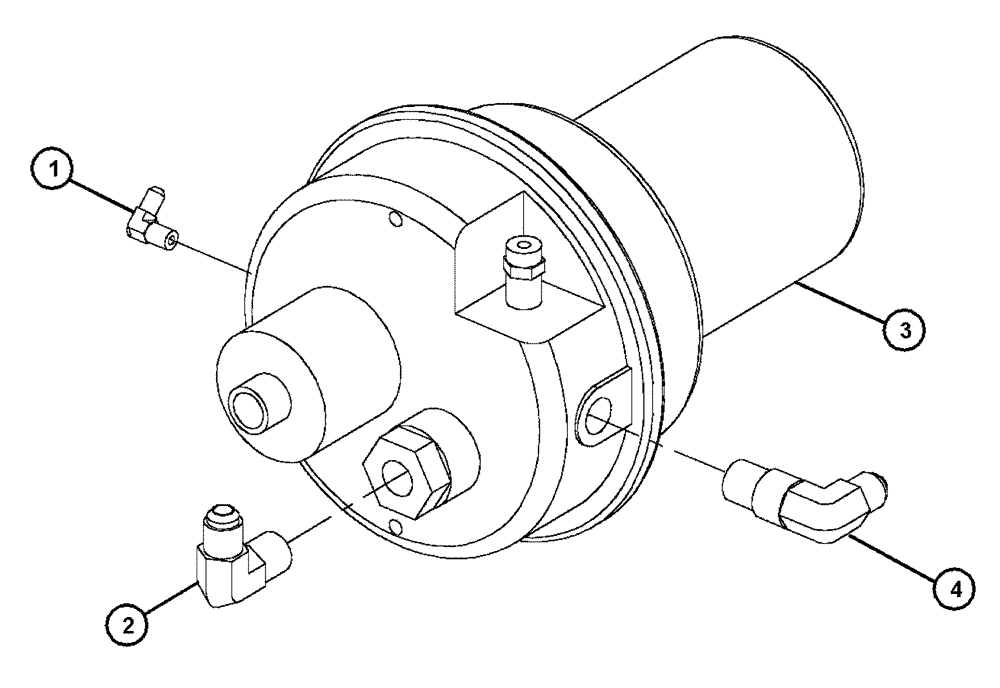

Запчасти Case IH FLX4330 (07-014) - AIR DRYER GROUP Pneumatics

1

BN2290148

ELBOW

4MJ - 2MP 90º

1шт.

2

BN2290508

ELBOW

2103-8-8

1шт.

3

BN2296407

FILTER ASSY

Air Dryer (Spin On)

1шт.

BN2296407-001

FILTER

Coalescing Kit

1шт.

Service Parts For Ref. 3

1шт.

BN2296407-002

FILTER

Filter, (Desiccant & Coalescing) (Spin On)

1шт.

Service Parts For Ref. 3

1шт.

BN2296407-003

REPAIR KIT

(Purge, Turbo, Saver, Check Valve)

1шт.

Service Parts For Ref. 3

1шт.

BN2296407-004

Air Dryer

1шт.

Service Parts For Ref. 3

1шт.

BN2296407-005

BRACKET

1шт.

Service Parts For Ref. 3

1шт.

BN2296407-006

CLAMP

T-Bolt

1шт.

Service Parts For Ref. 3

1шт.

4

BN2390690

FITTING

5603-8-10

1шт.

5

BN300358

NUT

M10-1.5, FLN, 8.8

4шт.

Not Shown

1шт.

6

BN300472

BOLT

M10-1.5 X 35, HH, SS

4шт.

Not Shown

1шт.

7

BN300507

WASHER

M10, Flat, SS

4шт.
