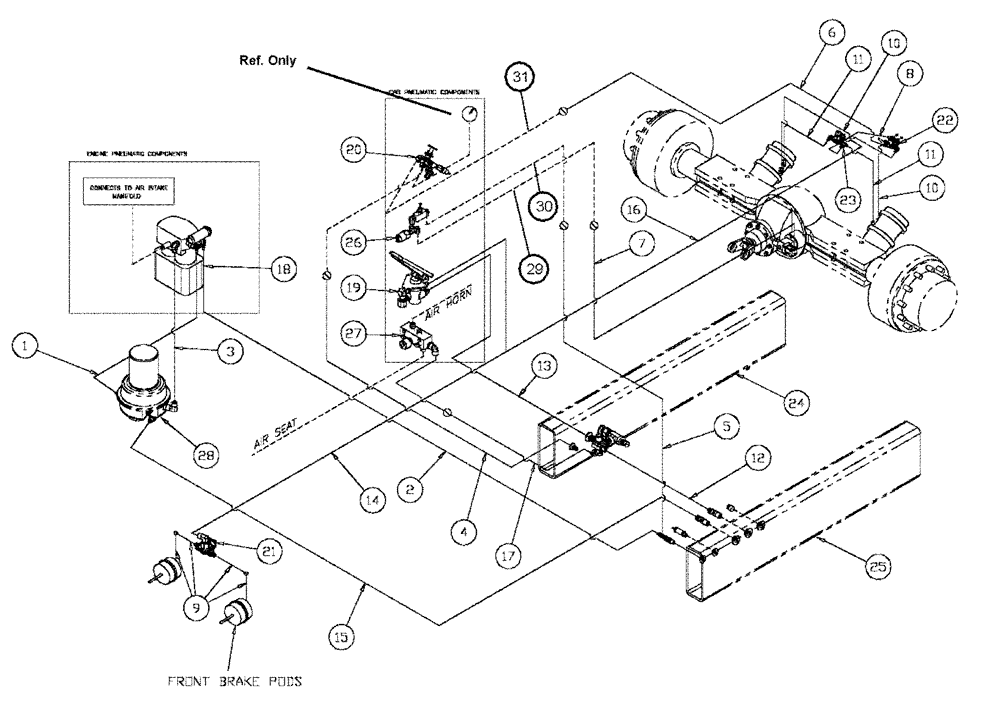

Запчасти Case IH FLX4330 (07-001) - PNEUMATIC ASSEMBLY Pneumatics

1

BN303497

4-100R5-4FJX-4FJX-77

1шт.

2

BN303498

4-100R5-4FJX-4FJX-90

1шт.

3

BN303957

HOSE

10-100R14-10FJX-10FJX-85

1шт.

4

BN3600001-034.38

451AR-4-01

1шт.

5

BN3600001-056.38

451AR-4-01

1шт.

6

BN3600001-162.38

451AR-4-01

1шт.

7

BN68493

HOSE

1/4" x 170"

1шт.

8

BN3600002-018.54

451AR-6-01

1шт.

9

BN3600002-022.54

451AR-6-01

4шт.

10

BN3600002-034.54

451AR-6-01

2шт.

11

BN3600002-038.50

451AR-6-01

2шт.

12

BN3600003-044.70

451AR-8-01

1шт.

13

BN3600003-056.70

451AR-8-01

1шт.

14

BN3600003-066.70

451AR-8-01

1шт.

15

BN3600003-076.70

451AR-8-01

1шт.

16

BN3600003-180.70

451AR-8-01

1шт.

17

BN3600002-032.54

451AR-6-01

1шт.

18

NSS

NOT SOLD SEPARAT

Air Compressor Group 4375

1шт.

See Fig. 07-002

1шт.

18

NSS

NOT SOLD SEPARAT

Air Compressor Group 4300, 4330 (3208 Cat Engine)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

See Fig. 07-003

1шт.

18

NSS

NOT SOLD SEPARAT

Air Compressor Group 4300 (JD 6081 Engine)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

See Fig. 07-004

1шт.

19

NSS

NOT SOLD SEPARAT

Brake Pedal Valve Group

1шт.

See Fig. 07-005

1шт.

20

NSS

NOT SOLD SEPARAT

Parking Brake Valve Group

1шт.

See Fig. 07-006

1шт.

21

NSS

NOT SOLD SEPARAT

Quick Release Front Brake

1шт.

See Fig. 07-007

1шт.

22

NSS

NOT SOLD SEPARAT

Quick Release Park Brake

1шт.

See Fig. 07-008

1шт.

23

NSS

NOT SOLD SEPARAT

Quick Release Rear Brake

1шт.

See Fig. 07-009

1шт.

24

NSS

NOT SOLD SEPARAT

Secondary Air Tank Group

1шт.

See Fig. 07-010

1шт.

25

NSS

NOT SOLD SEPARAT

Primary Air Tank Group

1шт.

See Fig. 07-011

1шт.

26

NSS

NOT SOLD SEPARAT

Assy, 2 Speed Shift Circuit

1шт.

See Fig. 07-012

1шт.

27

NSS

NOT SOLD SEPARAT

Assy, Air Manifold

1шт.

See Fig. 07-013

1шт.

28

NSS

NOT SOLD SEPARAT

Air Dryer Group

1шт.

See Fig. 07-014

1шт.

29

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

30

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

1шт.

31

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

1шт.

NSS

NOT SOLD SEPARAT

Throttle Group 4300, 4330

1шт.

Not Shown

1шт.
