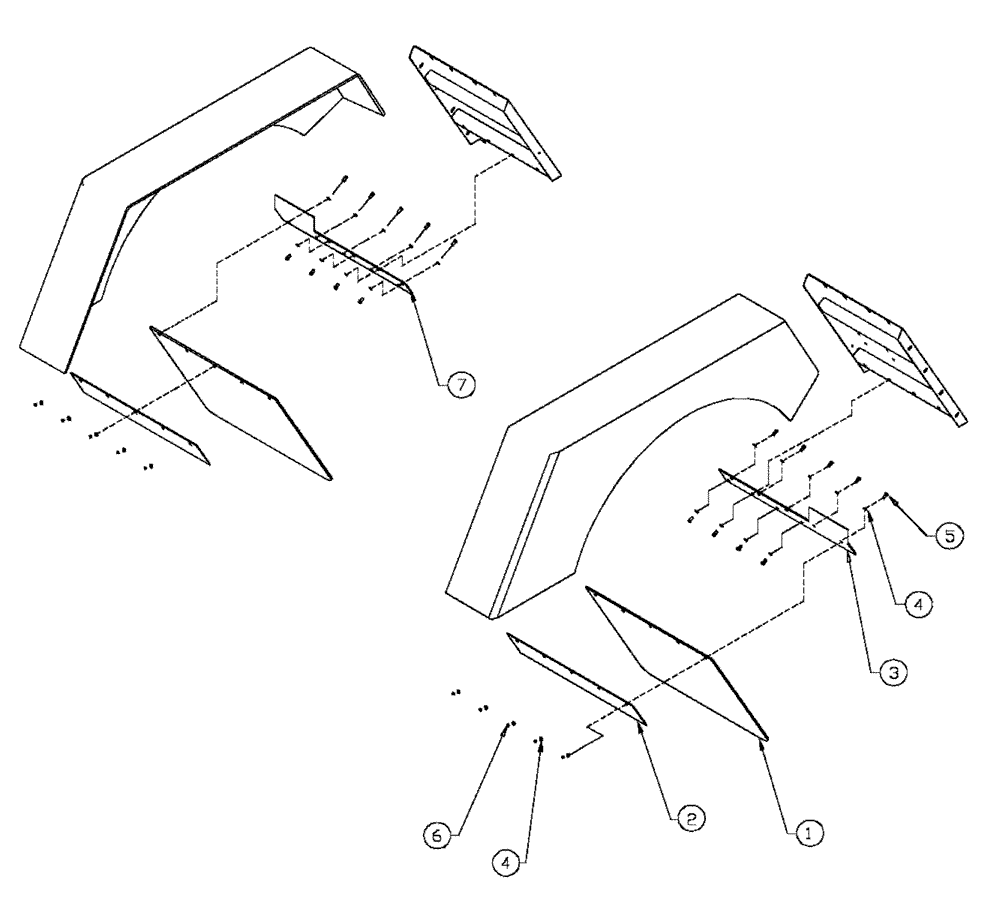

Запчасти Case IH FLX4330 (10-008) - MUD FLAPS, FRONT FENDER Options

BN306351

MUDFLAP

Front Fender (Complete)

1шт.

1

BN310598

MUDFLAP

Front

2шт.

2

BN306262

BRACKET, SUPPORTING

Mud Flap, Front

2шт.

3

BN306339

BRACKET

Mud Flap R.S.

1шт.

4

BN300499

WASHER,M10, 10.9

28шт.

5

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

18шт.

6

BN300393

NUT

M10-1.5, FLN, 10.9

10шт.

7

BN306340

MOUNTING PLATE

Mud Flap C.S.

1шт.
