(04-019) - HOOD ASSEMBLY (FLX 4300, 4330)

Запчасти Case IH FLX4330 (04-019) - HOOD ASSEMBLY (FLX 4300, 4330) Frame & Suspension

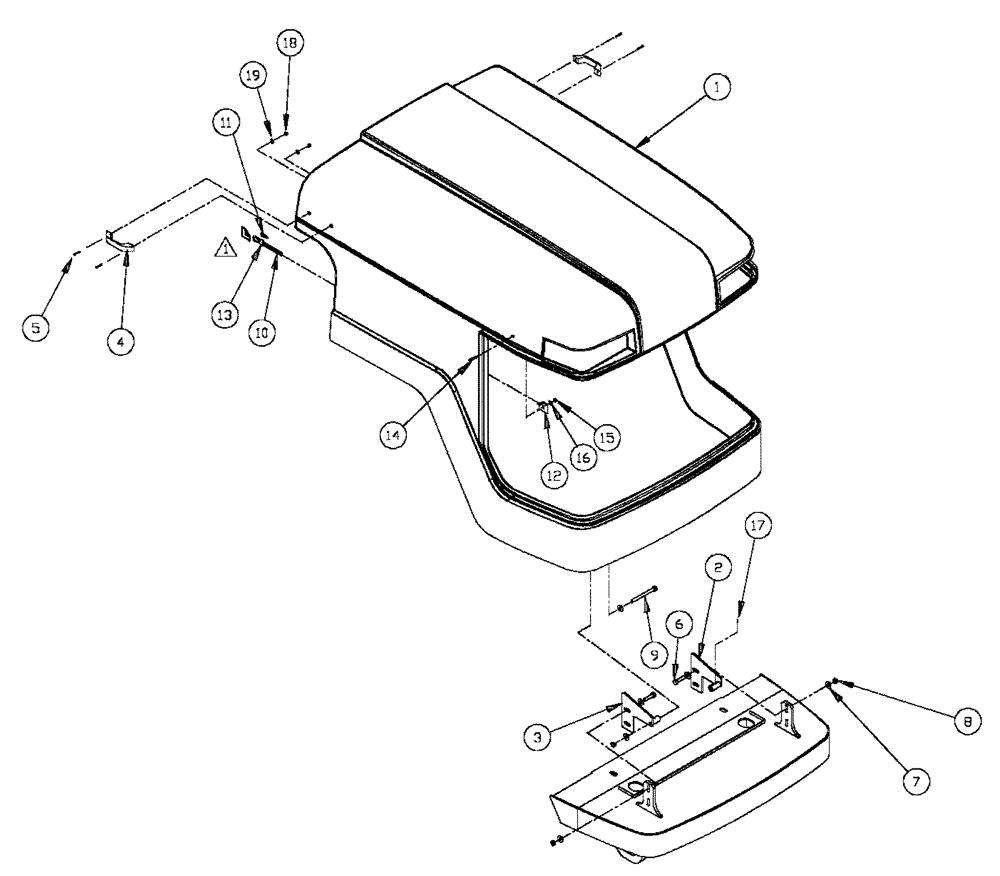

Схема запчастей Case IH FLX4330 - (04-019) - HOOD ASSEMBLY (FLX 4300, 4330) Frame & Suspension
18
14
17
9
16
12
3
4
15
13
2
8
6
19
11
10
5
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN309636

ENGINE HOOD

543, FBG Case Red

1шт.

2

BN302852

MOUNTING PLATE

Hinge, Frame, L.H.

1шт.

3

BN302851

MOUNTING PLATE

Hinge, Frame, R.H.

1шт.

4

BN311626

HANDLE

Molded Grab, Black

2шт.

5

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

4шт.

6

BN302747

BOLT

M12-1.75 X 50, HH, 10.9

4шт.

7

BN300500

WASHER,M12, 10.9

12шт.

8

BN300359

BOLT

M12-1.75, FLN, 8.8

6шт.

9

BN301082

NUT

M12-1.75 X 140, HH, 8.8

2шт.

10

BN2403397

CABLE

Vinylcoat 3/16 DRV

2шт.

11

BN2402055

THIMBLE

Wire Rope 3/16"

4шт.

12

BN7142951

SHEET

Cable Anchor

4шт.

Attach with the Top Radiator Mounting Bolt

1шт.

13

BN2403398

CLAMP

Wire Rope 3/16

4шт.

14

BN2403270

BOLT

Carriage 5/16 X 1-1/4 SS

2шт.

15

BN1470403C

FLANGE NUT

5/16-18, FLN, G8

2шт.

16

BN50141

WASHER

5/16, FW, G5

2шт.

17

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

19

BN310265

WASHER

10, Stainless Steel

4шт.
