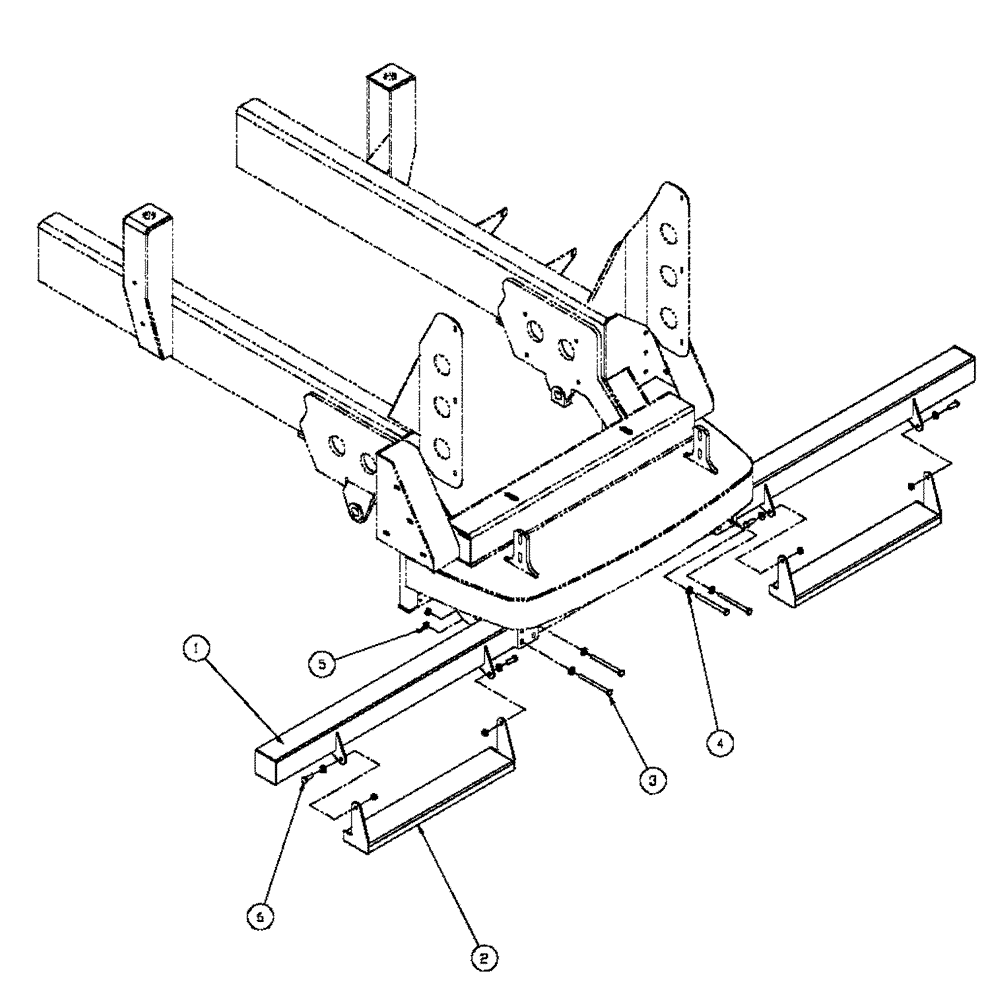

Запчасти Case IH FLX4330 (04-015) - FRONT STEP GROUP, 4 WHEEL Frame & Suspension

1

BN307748

BUMPER

Step Front

1шт.

FLX4300, FLX4330

1шт.

Shown

1шт.

1

BN301897

BUMPER

Step Front

1шт.

FLX4375 Only

1шт.

2

BN301900

STIRRUP

Front Step

2шт.

3

BN301082

NUT

M12-1.75 X 140, HH, 8.8

4шт.

FLX4300, FLX4330

1шт.

Shown

1шт.

3

BN301085

NUT

M12-1.75 X 170, HH, 8.8

4шт.

FLX4375 Only

1шт.

4

BN300500

WASHER,M12, 10.9

8шт.

5

BN304551

SCREW

M12-1.75, FLN, 10.9

8шт.

6

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.
