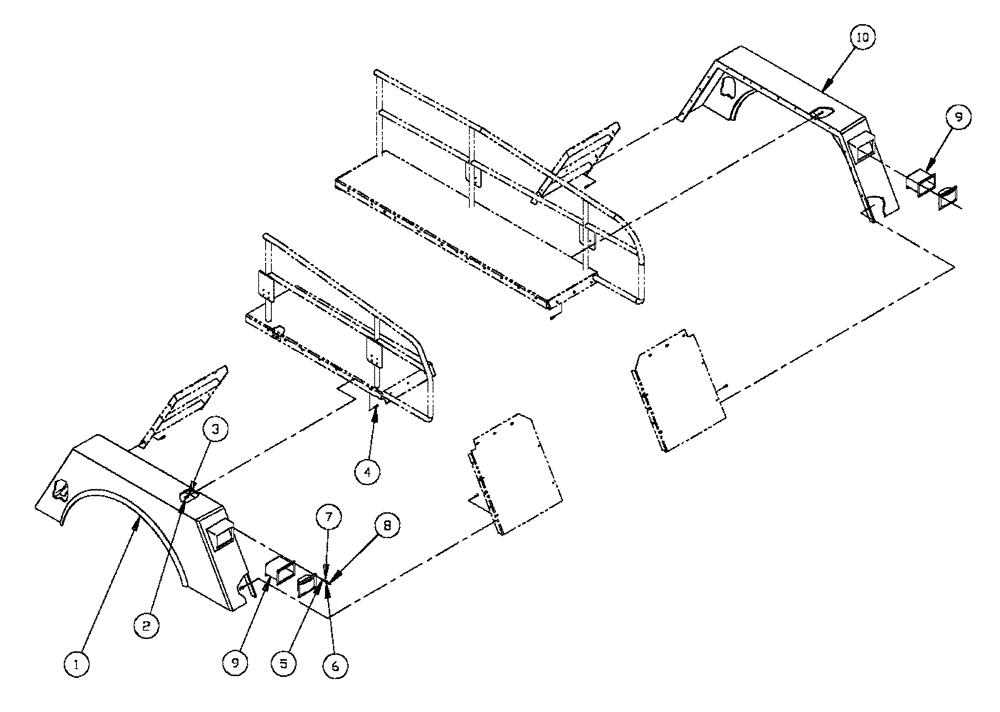

Запчасти Case IH FLX4330 (04-012) - FENDERS, FRONT, 4 WHEEL Frame & Suspension

1

BN311822

FENDER

Front, 4 Wheel, Black

1шт.

2

BN300393

NUT

M10-1.5, FLN, 10.9

32шт.

3

BN300490

BOLT

M10, FW, 8.8

64шт.

4

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

32шт.

5

BN50054

NUT,1/4"-20, SS

8шт.

6

BN50140

LOCK WASHER

Spring, 1/4", SS

8шт.

7

BN50138

WASHER,1/4", SS

8шт.

8

BN2403271

BOLT

Carriage SS

8шт.

9

BN7143130

COVER ASSY

HD LT Mud

2шт.

10

BN313053

FENDER

Front, RS, Black

1шт.
