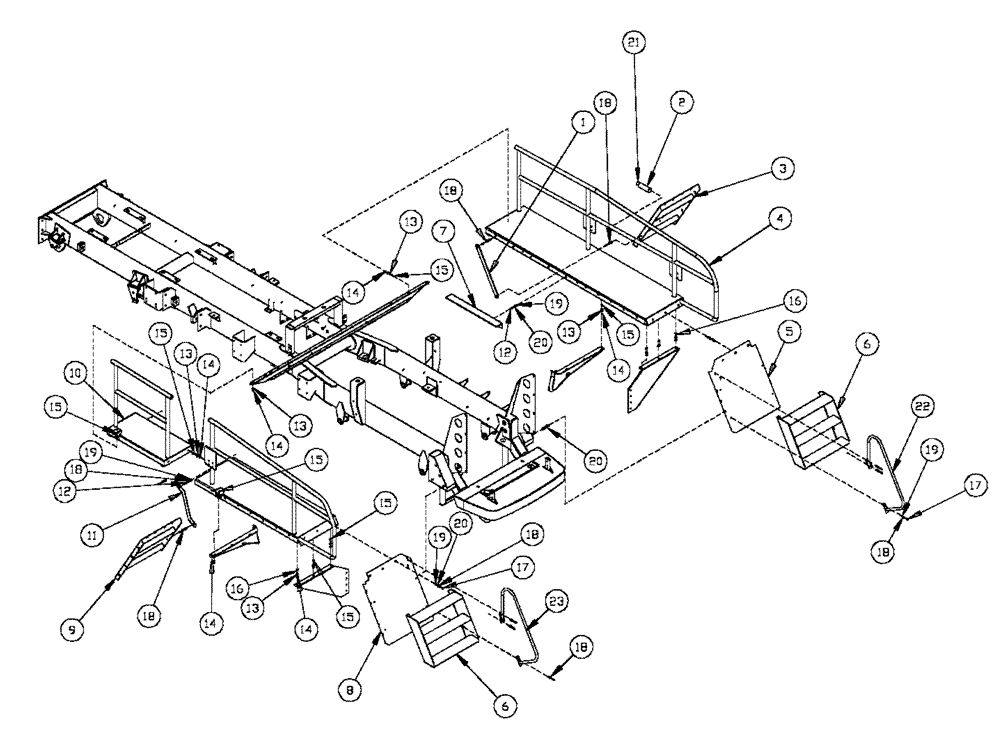

Запчасти Case IH FLX4330 (04-011) - WALKWAY, FRONT FENDERS Frame & Suspension

1

BN7141829

PLATE

Support Rod

1шт.

2

BN7141860

HOSE

Window Bumper

1шт.

3

BN7141905

SPLASH SHIELD

Rear Plat

1шт.

4

BN304159

WALKWAY

CATWALK R/S Walkway

1шт.

5

BN7141969

SPLASH SHIELD

Front Splash PL R/S

1шт.

6

BN7141968

STEP

Front (95)

2шт.

7

BN7141993

ANGLE

Step Plate

1шт.

8

BN7141970

SPLASH SHIELD

Front PL C/S

1шт.

9

BN7141904

SPLASH SHIELD

Rear Plat

1шт.

10

BN304550

Split Walkway

1шт.

11

BN303682

GUARD

Splash

1шт.

12

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

15шт.

13

BN300500

WASHER,M12, 10.9

24шт.

14

BN304551

SCREW

M12-1.75, FLN, 10.9

12шт.

15

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

10шт.

16

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

17

BN300472

BOLT

M10-1.5 X 35, HH, SS

18шт.

18

BN300507

WASHER

M10, Flat, SS

32шт.

19

BN300393

NUT

M10-1.5, FLN, 10.9

33шт.

20

BN300499

WASHER,M10, 10.9

34шт.

21

BN9990113

TY RAP, RTH-1400

2шт.

22

BN311976

HANDRAIL

R/S

1шт.

23

BN310363

HANDRAIL

1шт.
