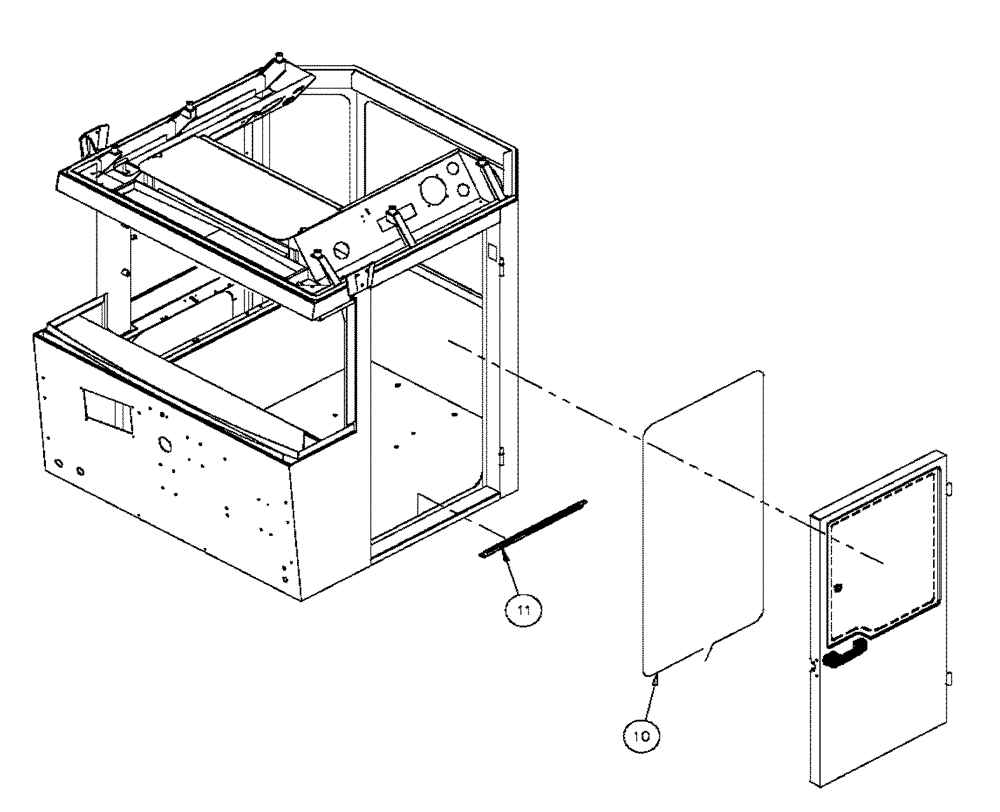

Запчасти Case IH FLX4330 (01-016[01]) - CAB EXTERIOR - DOOR ASSEMBLY (10) - CAB

BN315636

MS, '99 Cab Complete

1шт.

Includes Refs. 2 - 9

1шт.

BN315907

DOOR

SS, '99 Cab Complete

1шт.

Includes Refs. 2 - 9

1шт.

1

BN315926

DOOR

MS, Door (For Door Assy BN315636)

1шт.

1

BN315927

SS, Door (For Door Assy BN315907)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

NSS

NOT SOLD SEPARAT

Swing Out

1шт.

See Fig. 01-018

1шт.

3

BN313665

EXTENSION

Release

1шт.

4

BN314492

COVER

ABS

1шт.

5

BN314491

FOAM INSULATION

1шт.

6

BN313664

LATCH

Cam, Cab , FLX

1шт.

7

BN2406306-017

ROLL PIN

3/16 X 1/2

1шт.

8

BN66106

HANDLE

Outside

1шт.

9

BN315637

SEAL

Bulb, Window Titan

1шт.

10

BN315638

DOOR SEAL

Bulb, Door, Titan Cab

1шт.

11

BN315639

RETAINER

Seal Titan Door

1шт.

12

R51754

STRIKER

Door Striker

1шт.
