(01-015) - CAB AND PANEL MOUNTING

Запчасти Case IH FLX4330 (01-015) - CAB AND PANEL MOUNTING (10) - CAB

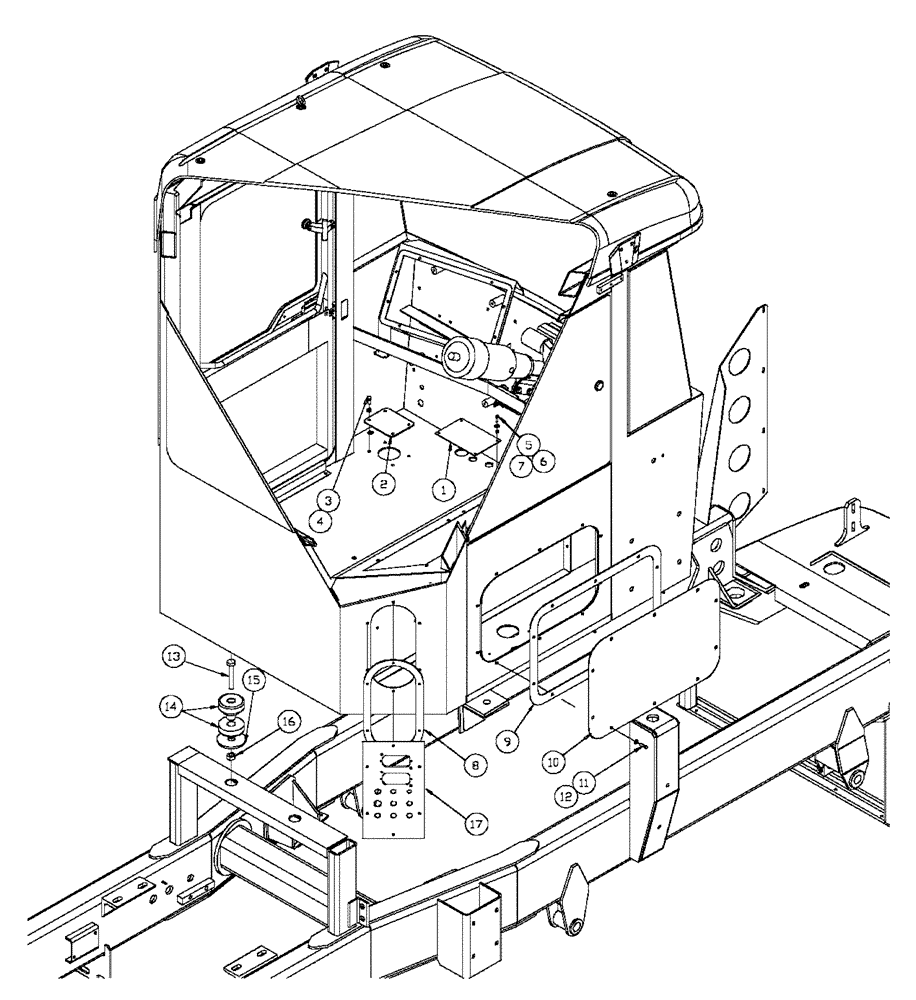

Схема запчастей Case IH FLX4330 - (01-015) - CAB AND PANEL MOUNTING (10) - CAB
7
11
5
1
4
10
16
3
12
17
9
8
14
15
13
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

BN310505

CAB FRAME

Cab, (Steel)

1шт.

BN310506

CAB FRAME

Cab, (Stainless Steel)

1шт.

1

BN306551

PLATE

Cover

1шт.

2

BN7146086

SHEET

Cover Plate Aux

1шт.

3

BN1913308C

HH 5/16-18 X 3/4 NC

4шт.

4

BN1470403C

FLANGE NUT

5/16-18, FLN, G8

4шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

6

BN50138

WASHER,1/4", SS

2шт.

7

BN2294431

SET SCREW,1/4" - 20

1/4-20, FLN, SS

2шт.

8

BN2390723

GASKET

Panel

1шт.

9

BN2390722

GASKET

Access Panel

1шт.

10

BN7142152

SHEET

Cover Plate Side

1шт.

11

BN2403261

BOLT

HH 1/4-20 X 1 SS

22шт.

12

BN2392389

WASHER

Flat 1/4 SS

16шт.

13

87342024

BOLT,Hex, M22 x 120mm, Cl 10.9

M22-2.5 X 120, HH, 10.9

4шт.

14

76082156

ISOLATOR

Molded Ring

4шт.

15

BN302284

WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk

Rebound, 3.88 od x .94 id x .25

4шт.

16

BN300417

BOLT

M22-2.5, FLN, 8.8

4шт.

17

BN8196071

PANEL

Cab & Chassis Only

1шт.
