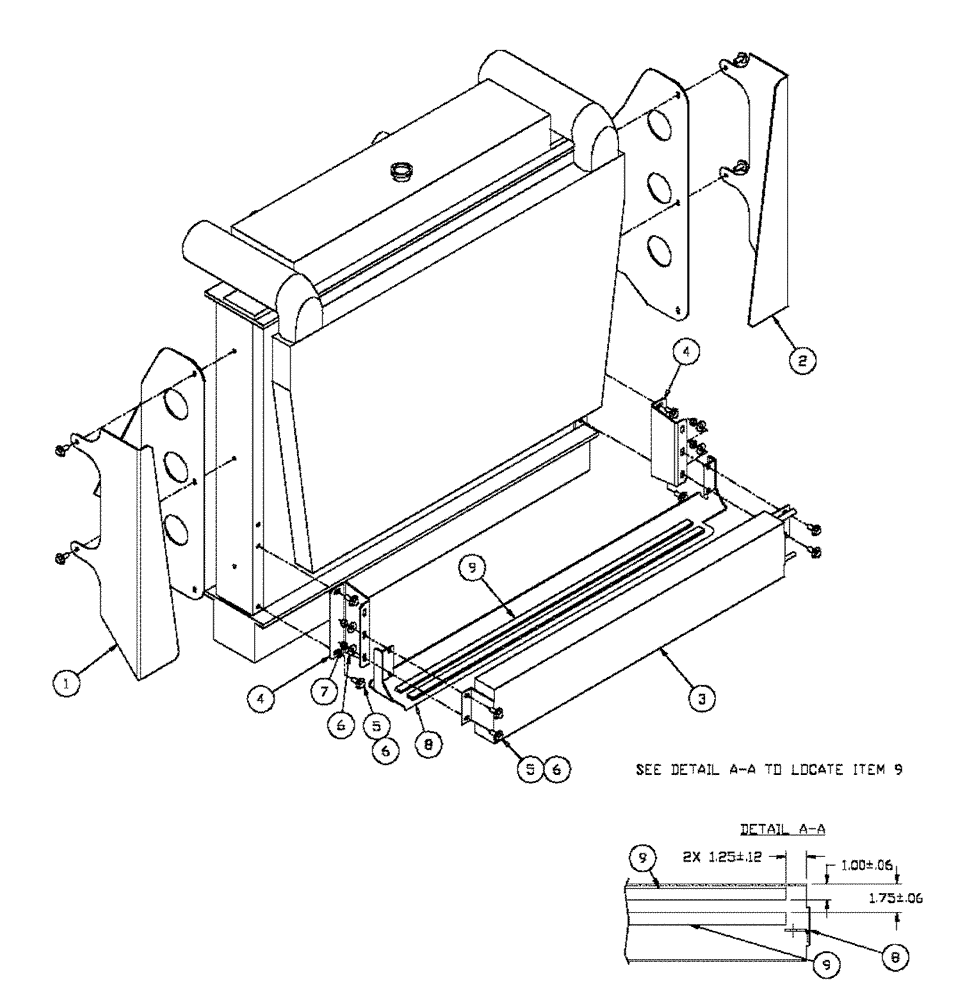

Запчасти Case IH FLX4330 (01-009) - CONDENSER GROUP (FLX 4300, FLX 4330 JD & CAT 3208 ENGINES) (10) - CAB

1

BN309404

MOUNTING PLATE

Condensor, CS

1шт.

2

BN309405

MOUNTING PLATE

Condensor, RS

1шт.

3

BN309527

CONDENSER

HVAC, 4Wheel

1шт.

4

BN309451

MOUNT

Condensor, CS 4300

2шт.

5

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

8шт.

6

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

12шт.

7

BN300429

BOLT

M8-1.25, FLN, 8.8

4шт.

8

BN313546

BRACKET, SUPPORTING

Condensor

1шт.

9

BN313819

FOAM

AC Condensor, 4 Wheel

2шт.
