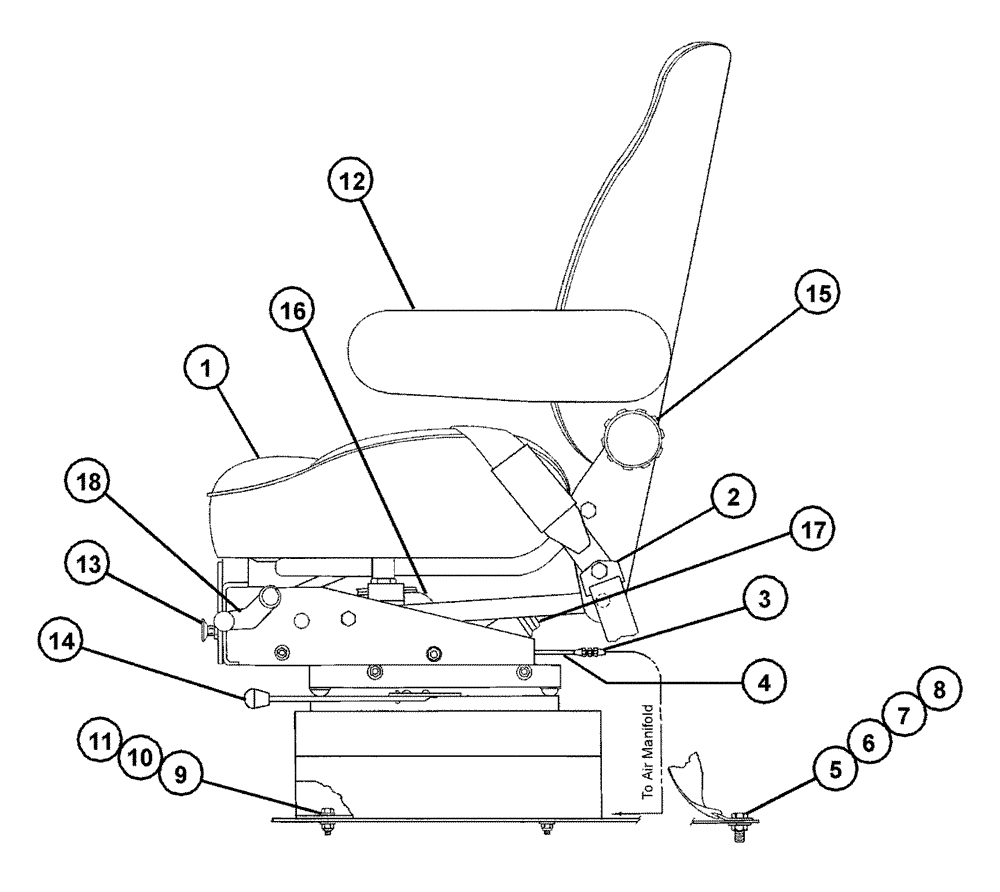

Запчасти Case IH FLX4330 (01-005) - AIR SEAT ASSEMBLY (10) - CAB

1

BN2394917

SEAT

Mag 100 W/Tufftex

1шт.

2

BN2293211

REPAIR KIT

Seat J1800F/SF Kit

1шт.

3

BN2292122

FITTING

62AB-4

1шт.

4

BN2393054

TUBE,1/4" X 16' BULK, SAE J844, BLUE

Air, Synflex 1/4" Blue, Bulk

6шт.

5

BN1913356C

SCREW

HH 7/16-14 X 2 NC G

2шт.

6

BN1470405C

NUT

NC 7/16-14 Flex Lock

2шт.

7

BN2303145

WASHER

Flat 7/16

2шт.

8

BN2392399

WASHER

Flat 7/16 SS

2шт.

9

BN1913335C

BOLT

HH 3/8-16 X 1-1/2

4шт.

10

BN2392391

WASHER

Flat 3/8 SS

4шт.

11

BN2294495

LOCK NUT

3/8-16 SS Flex Lock

4шт.

12

BN2394915-010

Arm Adjustment, R.H.

1шт.

BN2394915-002

Arm Adjustment, L.H.

1шт.

Associated Part Of Arm Adjustment Bracket R.H., P/N BN2394915-010

1шт.

BN2394915-003

ARM

L.H.

1шт.

Associated Part Of Arm Adjustment Bracket R.H., P/N BN2394915-010

1шт.

BN2394915-004

ARM

R.H.

1шт.

Associated Part Of Arm Adjustment Bracket R.H., P/N BN2394915-010

1шт.

BN2394915-005

1шт.

Associated Part Of Arm Adjustment Bracket R.H., P/N BN2394915-010

1шт.

13

BN2392255

HYDRAULIC VALVE

Air

1шт.

BN2394915-006

KNOB

Air Valve

1шт.

Service Parts For Ref. 13

1шт.

14

BN2394915-007

TRACK ASSY

Complete

1шт.

15

BN2394917-001

Recliner

1шт.

16

BN2394917-002

KIT

Air

1шт.

17

BN2394915-009

SHOCK ABSORBER

1шт.

18

BN303238

HANDLE

height adjust

1шт.
