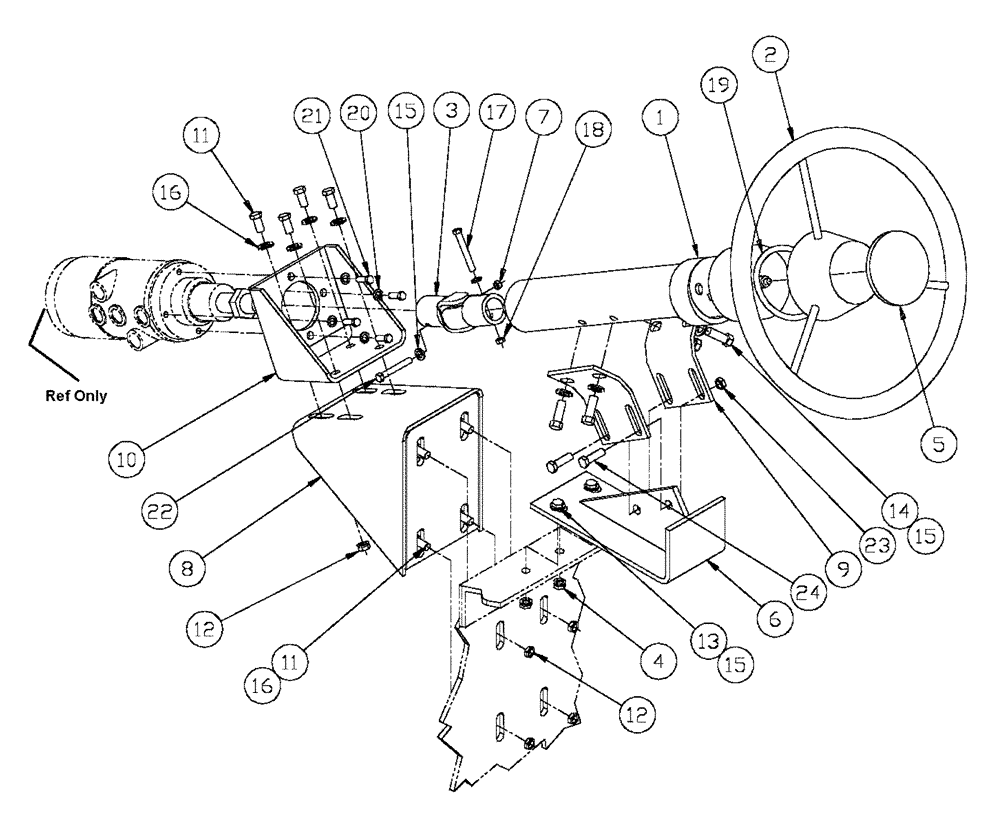

Запчасти Case IH FLX4330 (01-004) - STEERING ASSEMBLY (10) - CAB

1

BN2396330

STEERING COLUMN

Assy

1шт.

2

BN2298398

STEERING WHEEL

1шт.

BN2396330-001

REPAIR KIT

Turn Signal Repair Kit

1шт.

3

BN2292560

YOKE

W/ U-Joint

1шт.

BN2294188

REPAIR KIT

1шт.

Service Parts For Ref. 3

1шт.

4

BN305104

FLANGE NUT

3/8-16, FLN, G8

2шт.

5

BN312561

CAP

Steering Wheel, Blk

1шт.

6

BN315609

Column Steering

1шт.

7

BN305105

FLANGE BOLT,3/8" - 24, Gr 8

3/8-24, FLN, G8

1шт.

8

BN7142247

MOUNTING PLATE

Steering Valve

1шт.

9

BN315608

SUPPORT

Column Steering

2шт.

10

BN7142246

MOUNTING PARTS

Steering Valve

1шт.

11

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

12

BN305108

FLANGE BOLT,3/8" - 16, SST

3/8-16, FLN, SS

4шт.

13

BN1913634C

3/8-16 X 1, HH, G8

2шт.

14

BN305106

SCREW,3/8" - 24 x 3/4", Gr 8

3/8-24 X .75, HH, G8

4шт.

15

BN2292371

NUT

3/8, FW, G8

8шт.

16

BN50146

WASHER,3/8", Stainless

8шт.

17

BN305101

SCREW,Hex, 5/16" - 24 x 2", Gr 8

5/16-24 X 2, HH, G8

1шт.

18

BN305100

FLANGE BOLT,5/16" - 24, Gr 8

5/16-24, FLN, G8

1шт.

19

BN2395066

SEAL

Trim, SD-161

2шт.

20

BN305102

SCREW,5/16", Gr 8

5/16, LW, G8

4шт.

21

BN305103

SCREW,5/16" - 18 x 3/4", Gr 8

5/16-18 X .75, HH, G8

4шт.

22

BN305107

SCREW,Hex, 3/8" - 24 x 1 3/4", Gr 8

3/8-24 X 1.75, HH, G8

1шт.

23

BN305109

FLANGE BOLT,7/16" - 20, Gr 8

7/16-20, FLN, G8

2шт.

24

BN50816

7/16-20 X 1.5, HH, G8

2шт.
