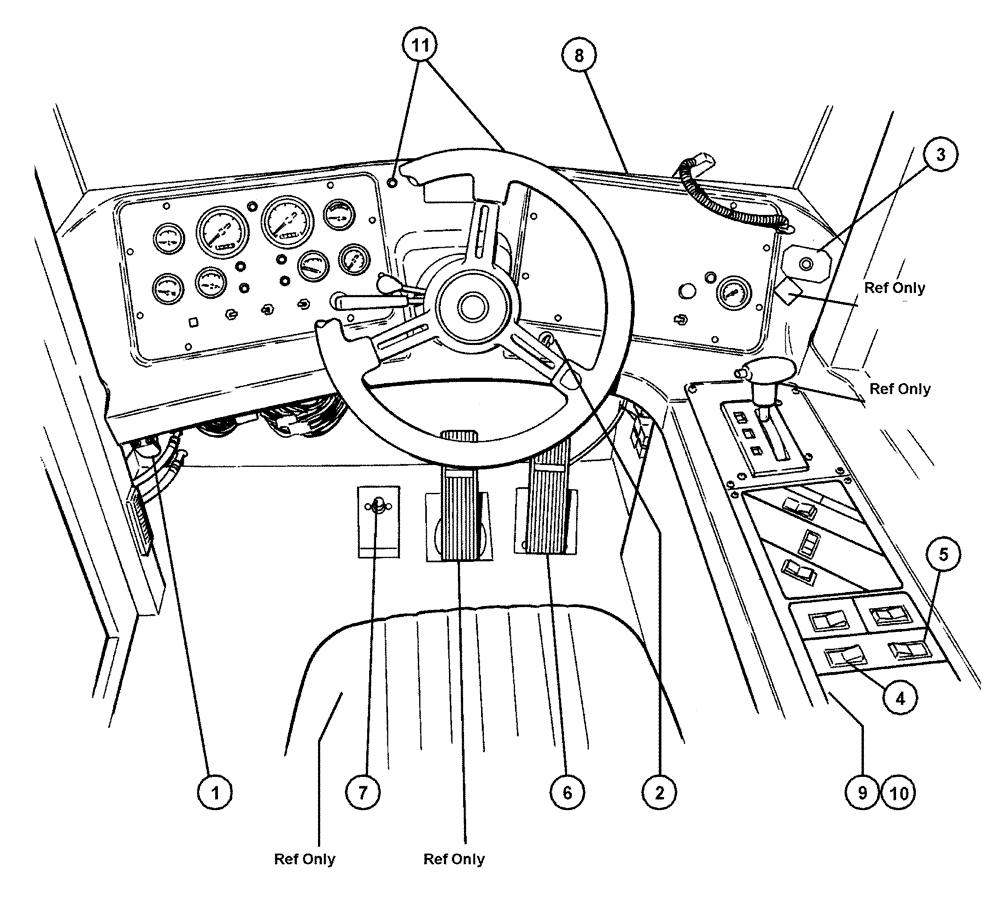

Запчасти Case IH FLX4330 (01-002) - CAB ELECTRICAL GROUP (10) - CAB

1

BN65223

POWER SOCKET

Outlet, 12V

1шт.

BN2404968

SELF-TAP SCREW,#8 x 5/8"

HH #8 X 5/8 SLFTAP

4шт.

Associated Part Of Outlet, Aux Power Single, P/N BN2392095

1шт.

2

282775A1

IGNITION SWITCH

With Padded Keys

1шт.

3

BN2291152

REPAIR KIT

Low air Pressure 326

1шт.

4

BN310461

SWITCH

Dpdt, (ON)-Off-(ON)

1шт.

All Titan Models Mounted W/Flex-Air®

1шт.

4

BN29445

SWITCH

On-Off-On

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

FLX4300 With Jd Engine, FLX4375 And Mounted W/Liquid Tank

1шт.

5

BN310463

SWITCH

Dpdt, On-None-On

1шт.

All Titan Models Mounted W/Flex-Air®

1шт.

5

BN2391922

SWITCH

Cutler Hammer 886

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

FLX4300, FLX4330 With Cat Engine

1шт.

5

BN24129

SWITCH

On-None-On Dpdt

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

FLX4300 With Jd Engine, FLX4375 And Mounted W/Liquid Tank

1шт.

6

NSS

NOT SOLD SEPARAT

Throttle Pedal - Engine Dependent

1шт.

BN302720

PLATE

Elect, Throttle Pedal (For Throttle P/N 302305)

1шт.

Associated Part Of Throttle Pedal - Engine Dependent

1шт.

BN300363

BOLT

M6-1 X 20, HH, 8.8

3шт.

Associated Part Of Throttle Pedal - Engine Dependent

1шт.

BN300428

NUT

M6-1, FLN, 8.8

3шт.

Associated Part Of Throttle Pedal - Engine Dependent

1шт.

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

Associated Part Of Throttle Pedal - Engine Dependent

1шт.

BN304315

NUT

M8-1.25, FLN 10.9

3шт.

Associated Part Of Throttle Pedal - Engine Dependent

1шт.

7

BN29522

SWITCH

Dimmer Floor Mount

1шт.

FLX4375 Only

1шт.

BN29618

MOUNTING PLATE

10 ga HRS 3.5 x 10.5

1шт.

Associated Part Of Switch-Dimmer Floor Mount, P/N BN29522

1шт.

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

Associated Part Of Switch-Dimmer Floor Mount, P/N BN29522

1шт.

BN304315

NUT

M8-1.25, FLN, 10.9

4шт.

Associated Part Of Switch-Dimmer Floor Mount, P/N BN29522

1шт.

8

BN311601

DASH PANEL

RH, Chassis

1шт.

9

BN311490

PANEL

Console, R.H., Basic

1шт.

10

BN311491

DECAL

Console, R.H., Basic

1шт.

11

BN2290807

INDICATOR LIGHT

Indicator Green

2шт.

BN2291235

LAMP SOCKET

Light Indicator

2шт.

Associated Part Of Light, Indicator Green, P/N BN2290807

1шт.

BN8207056

Cab Grounding

1шт.

Not Shown

1шт.

Cat Engines Only

1шт.

BN8207055

CABLE

Cab Ground

1шт.

Not Shown

1шт.

JD Engine Only

1шт.
