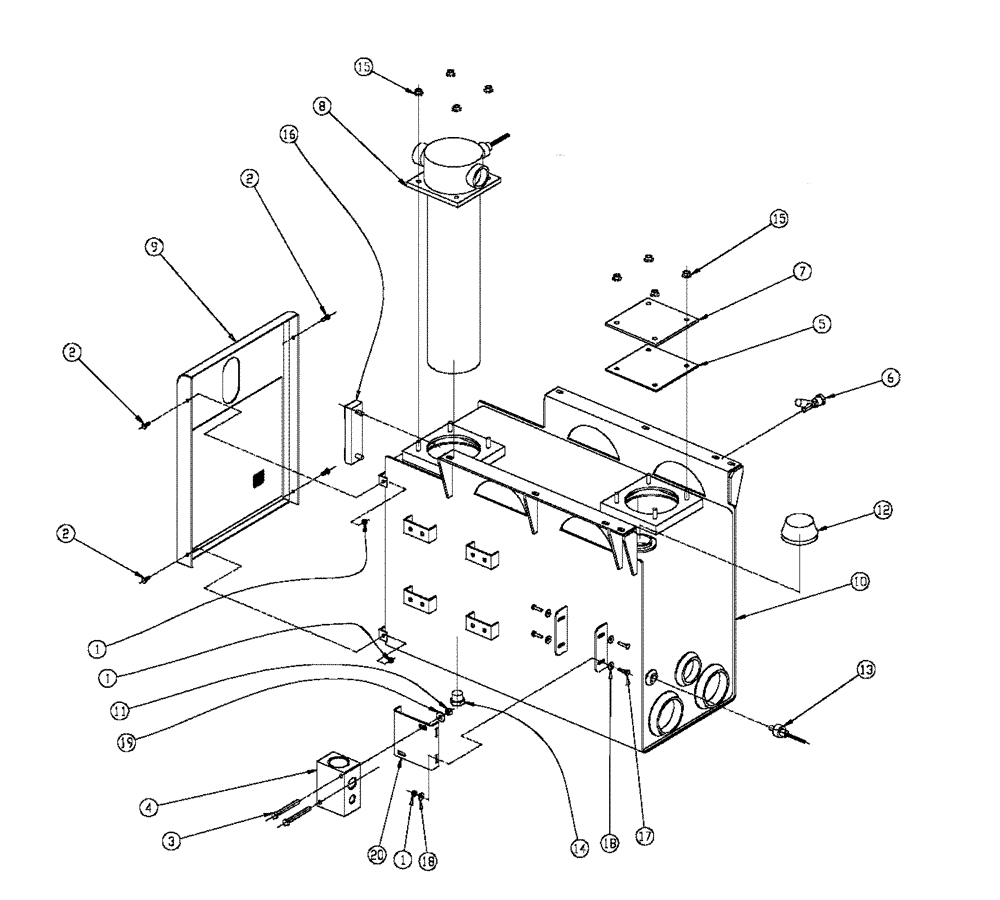

Запчасти Case IH FLX4330 (06-004) - HYDRAULIC TANK GROUP (07) - HYDRAULICS

1

BN300394

BOLT

Hex, M14 x 60, 8.8, Full Thd

8шт.

2

BN301011

NUT

M6-1 X 12, HH, 10.9

4шт.

3

BN301316

M8-1.25 X 90, HH, 10.9

2шт.

4

BN302877

MANIFOLD

Oil Return

1шт.

5

BN306733

GASKET

Cover Plate

1шт.

6

BN306736

SWITCH

Level, Float

1шт.

Position Level Sensor so Arrows on Hex are Pointed Upward

1шт.

7

BN306734

COVER

Cleanout

1шт.

8

NSS

NOT SOLD SEPARAT

Tank Filter, 6 ABS

1шт.

See Fig. 06-009

1шт.

9

BN303906

SHIELD

Heat, TITAN

1шт.

10

BN304242

TANK

Hydraulic Oil, TITAN

1шт.

11

BN304315

NUT

M8-1.25, FLN, 10.9

2шт.

12

BN304339

VALVE

Press Valve

1шт.

13

BN305020

SENDER UNIT

Temp, 3/8 NPT

1шт.

14

9841223

PLUG,1-1/16" - 12 ORB

1шт.

15

BN50061

LOCK NUT

3/8"-16, G5

8шт.

16

BN53957

GAUGE

Sight W/Temperature

1шт.

17

86639038

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

18

BN300488

WASHER

M6, Flat, 8.8

8шт.

19

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

20

BN306337

BRACKET

Oil Manifold

1шт.
