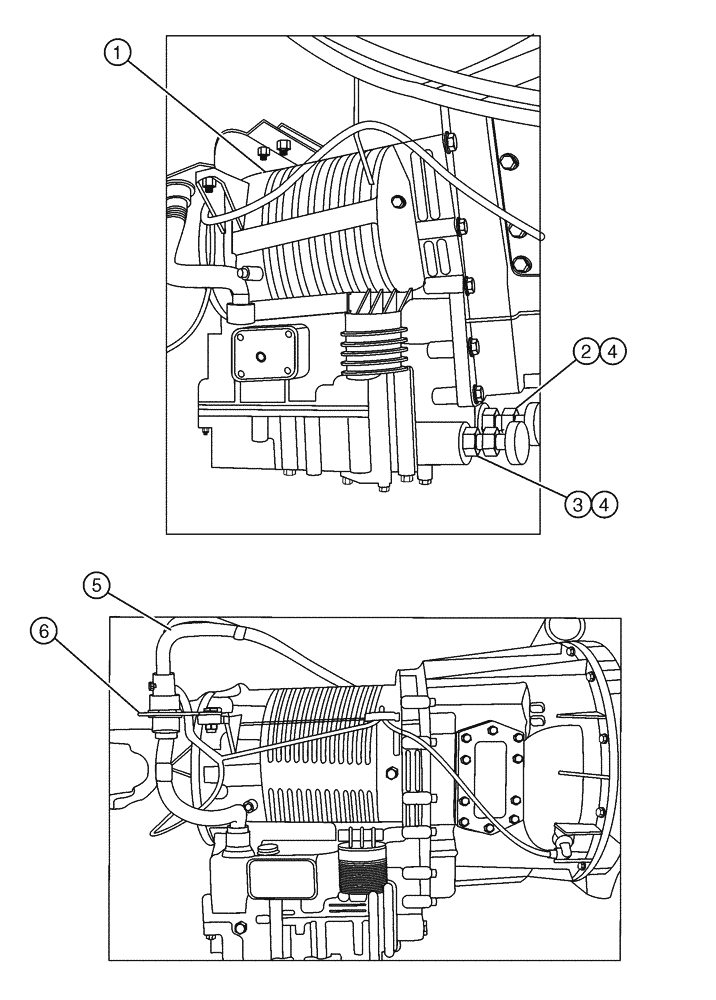

Запчасти Case IH FLX4330 (03-002[02]) - TRANSMISSION GROUP (FLX 4300, FLX 4330 CAT 3208 AUTO) (03) - TRANSMISSION

1

BN304256

TRANSMISSION

Allison, MD3060/330

1шт.

For A Complete Transmission

1шт.

87743577

SERVICE KIT

High Capacity Filter, Allison 295489

1шт.

Service Parts For Ref. 1

1шт.

BN2402071-010

MOUNTING PLATE

TPS

1шт.

Service Parts For Ref. 1

1шт.

BN2402071-014

MODULE

Vehicle

1шт.

Service Parts For Ref. 1

1шт.

BN2402071-016

REPAIR KIT

295/330

1шт.

Service Parts For Ref. 1

1шт.

Includes Refs. -003 Through -008

1шт.

BN2402071-003

BALANCER

29503328

3шт.

Parts Of Terminal Cover Assy., P/N BN304256

1шт.

BN2402071-004

PLATE

Flex, 29503696

1шт.

Parts Of Terminal Cover Assy., P/N BN304256

1шт.

BN2402071-005

DIPSTICK

Transmission Fluid

1шт.

Parts Of Terminal Cover Assy., P/N BN304256

1шт.

BN2402071-006

PLATE

1шт.

Parts Of Terminal Cover Assy., P/N BN304256

1шт.

BN2402071-007

Ring 29503695

1шт.

Parts Of Terminal Cover Assy., P/N BN304256

1шт.

BN2402071-008

RING GEAR

Assy

1шт.

Parts Of Terminal Cover Assy., P/N BN304256

1шт.

2

BN302639

ELBOW

12 MOR-12 MB x 45

1шт.

3

BN302655

FITTING

12Mor-12Mb

1шт.

4

BN303489

HOSE

Transmission To Radiator, -12 x -12 x 73" Long

2шт.

5

BN302159

WIRE HARNESS

Trans, Interface

1шт.

6

BN7146462

MOUNT

MD Harness Support

1шт.

7

BN2291671-001

REPAIR KIT

Cable Anchor

1шт.

Behind Engine Fan Blade

1шт.

8

BN305699

FRAMEWORK

TPS 4 Wheel Titan Chassis

1шт.

3208 Engine Only

1шт.

9

BN306108

BRACKET

TPS

1шт.

Behind Engine Fan Blade

1шт.

BN312526

CONTROL UNIT

ECU, Trans, MD3060, Cat 3208 Engine

1шт.

Not Shown

1шт.

See Fig. 03-001

1шт.

BN301974

Transmission, JD 6081H Engine

1шт.

Not Shown

1шт.

For A Complete Transmission

1шт.

BN305693

ECU, Trans, JD 6081H Engine

1шт.

Not Shown

1шт.

BN304875

Trans JD 6081H Engine

1шт.

Not Shown

1шт.

NSS

NOT SOLD SEPARAT

Trans In/Output

2шт.

Not Shown

1шт.

See Fig. 03-001

1шт.

NSS

NOT SOLD SEPARAT

MD3060 (1710)

1шт.

Not Shown

1шт.

See Fig. 03-001

1шт.

NSS

NOT SOLD SEPARAT

1шт.

Not Shown

1шт.

See Fig. 03-001

1шт.

NSS

NOT SOLD SEPARAT

Relay

1шт.

Not Shown

1шт.

See Fig. 03-001

1шт.

NSS

NOT SOLD SEPARAT

Trans Oil Filter, Md

1шт.

Not Shown

1шт.

See Fig. 03-001

1шт.
