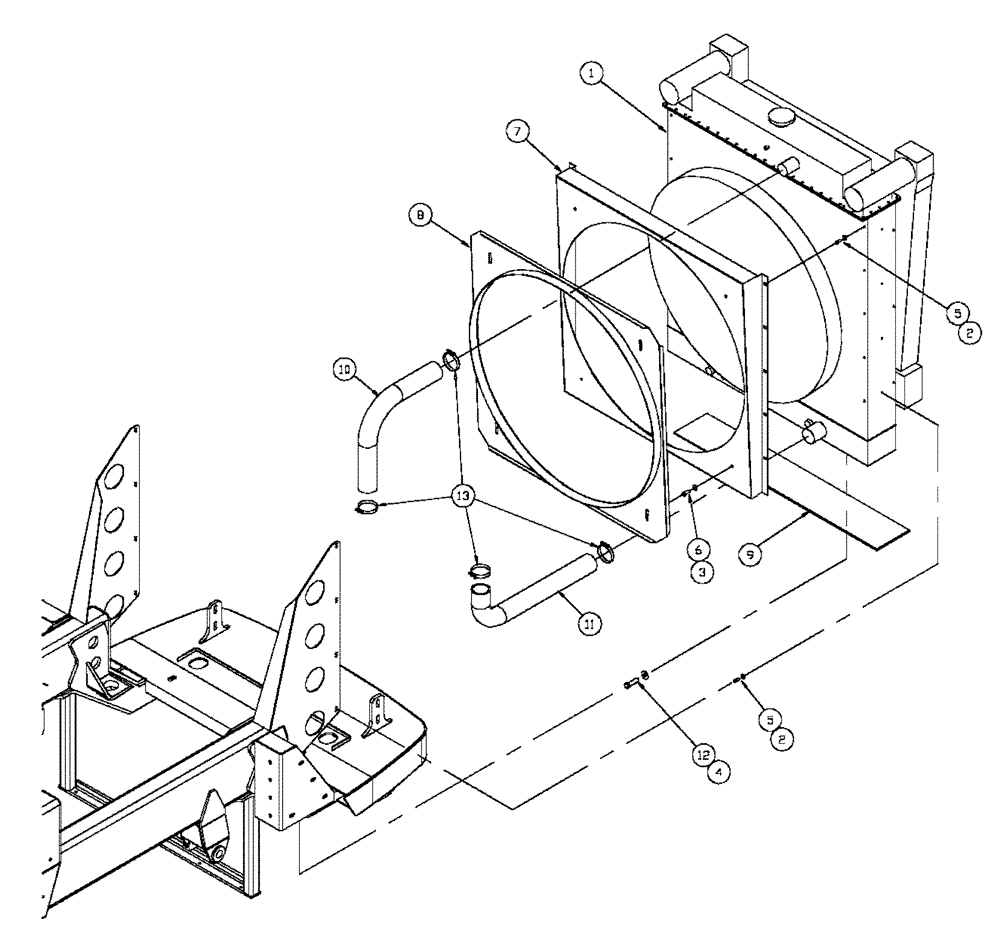

Запчасти Case IH FLX4330 (02-032) - RADIATOR GROUP (FLX 4375) (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
BN300027
RADIATOR
40 X 45, 4 Coolers
1шт.
BN300011
ANGLE
Chan. Mount, Oil Cooler
1шт.
Service Parts For Ref. 1
1шт.
BN300013
TANK
Top
1шт.
Service Parts For Ref. 1
1шт.
BN300029
RADIATOR
Water, 40 x 45
1шт.
Service Parts For Ref. 1
1шт.
BN300030
RADIATOR
Bottom Tank, 40 x 45
1шт.
Service Parts For Ref. 1
1шт.
BN300031
COOLER ASSY.
CAC, 40 X 45 Radiator
1шт.
Service Parts For Ref. 1
1шт.
BN305644
OIL COOLER
Radiator, 30 X 38,-20 MB
1шт.
Service Parts For Ref. 1
1шт.
BN306028
RADIATOR CAP
15# SAE MED
1шт.
Service Parts For Ref. 1
1шт.
BN300028
RADIATOR
Assy 40 X 45 3 Coolers
1шт.
Indicates Old Part Number Or Can Order Newer Part Number Listed Above
1шт.
BN300013
TANK
Top
1шт.
Service Parts For Ref. 1
1шт.
BN300029
RADIATOR
Water, 40 x 45
1шт.
Service Parts For Ref. 1
1шт.
BN300030
RADIATOR
Bottom Tank, 40 x 45
1шт.
Service Parts For Ref. 1
1шт.
BN300031
COOLER ASSY.
CAC, 40 X 45 Radiator
1шт.
Service Parts For Ref. 1
1шт.
BN306028
RADIATOR CAP
15# SAE MED
1шт.
Service Parts For Ref. 1
1шт.
2
BN300497
WASHER,M8, 10.9
18шт.
3
BN300499
WASHER,M10, 10.9
4шт.
4
BN300501
WASHER
M16, FW, 10.9
2шт.
5
80043233
SCREW
Hex, M8 x 20, 10.9
18шт.
6
BN301045
BOLT,Hex, M10 x 25, 10.9, Full Thd
4шт.
7
BN302188
BOX
Fan Shroud, 38"
1шт.
8
BN302192
FAN
38"
1шт.
9
BN302276
RADIATOR
7 X 43
1шт.
10
BN302306
HOSE,2.50" ID x 14.50", SAE 20R4
Upper
1шт.
11
BN302307
HOSE,2.50" ID x 23.25", SAE 20R4
Lower
1шт.
12
BN302759
BOLT
M16-2 X 50, HH, 10.9
2шт.
13
BN51098
HOSE CLAMP
#48
4шт.
BN302660
FITTING
20MOR-20MB
3шт.
Not Shown 300034 And 3000350
1шт.
BN305540
HOSE
20-100R1AT-20FORX-20FORX-165
2шт.
Not Shown 300034 And 3000350
1шт.
BN305539
FITTING
20FB-24MB
2шт.
Not Shown 300034 And 3000350
1шт.
BN302577
ELBOW
20MORr-20MBX90
1шт.
Not Shown 300034 And 3000350
1шт.
BN302660
FITTING
20MOR-20MB
3шт.
Not Shown 300034 And 3000350
1шт.
Выбрано товаров: 49
