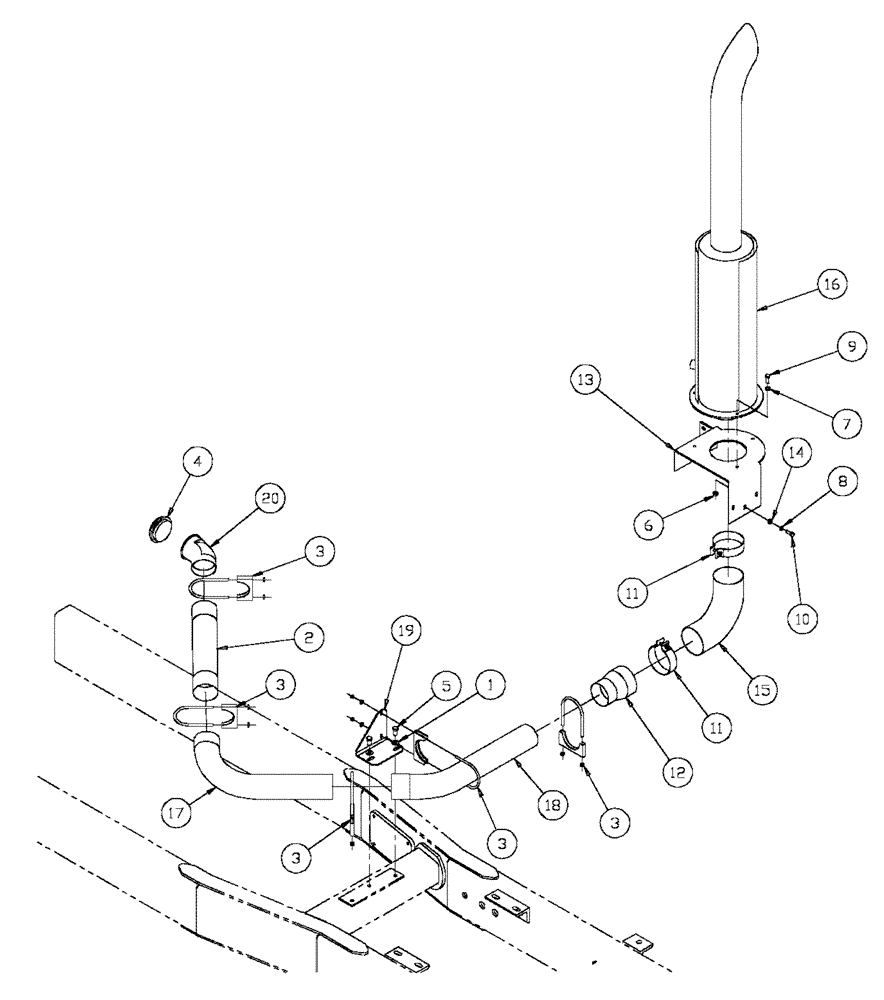

Запчасти Case IH FLX4330 (02-028) - AIR EXHAUST GROUP (FLX 4300, FLX 4330 CAT ENGINE) (01) - ENGINE

1

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

2шт.

2

BN2393089

PLASTIC-RUBBER TUBE

Flexible 4"

1шт.

3

BN25927

CLAMP,104.8mm ID

4" Muffler

5шт.

4

BN2400396

CLAMP

Exhaust 4" 1W2431

1шт.

5

BN300367

BOLT

1/2-20 X 1, HH, G8

2шт.

6

BN300393

NUT

M10-1.5, FLN, 10.9

3шт.

7

BN300499

WASHER,M10, 10.9

3шт.

8

BN300500

WASHER,M12, 10.9

5шт.

9

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

10

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

5шт.

11

BN303459

PIPE CLAMP

Muffler, 5"

2шт.

12

BN303462

REDUCER FITTING

5 X 4, O.D., I.D.

1шт.

13

BN304531

BRACKET

Muffler

1шт.

14

BN304551

SCREW

M12-1.75, FLN, 10.9

5шт.

15

BN310218

ELBOW

5" Exhaust Mod.

1шт.

16

NSS

NOT SOLD SEPARAT

Muffler Assy, 18-2450 CFM

1шт.

See Fig. 02-030

1шт.

17

BN312793

ELBOW

Exhaust, 90 Degree

1шт.

18

BN312794

ELBOW

Exhaust, 45 Degree

1шт.

19

BN312801

BRACKET

Exhaust Support

1шт.

20

BN7146266

ELBOW

Exhaust (4" X 45 Degree)

1шт.
