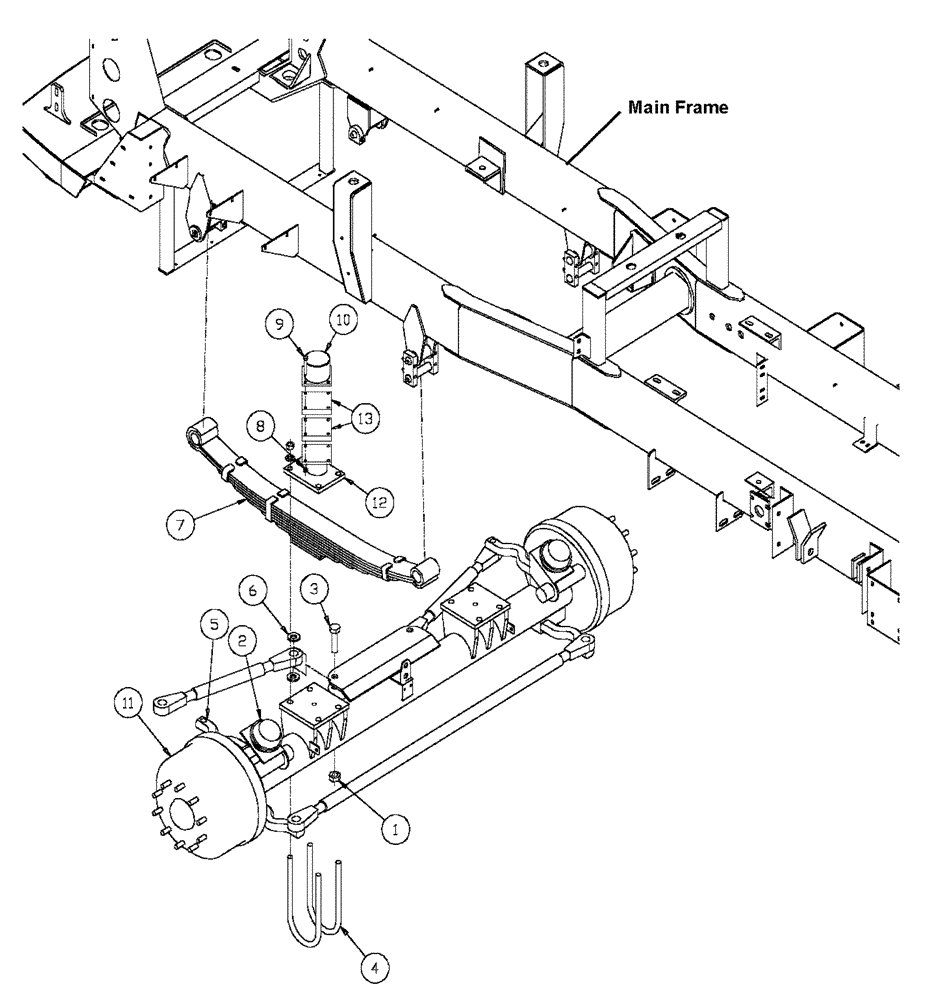

Запчасти Case IH FLX4330 (04-001) - FRONT AXLE ASSEMBLY Frame & Suspension

1

BN1470411F

LOCK NUT

1"-14 Flex

2шт.

2

BN1666159

PLUG

Allen Head 3/8

2шт.

3

428-1672

BOLT,Hex, 1" - 14 x 4-1/2", Gr 8

Hex, 1"-14 x 4", G8

2шт.

4

BN2292187

U-BOLT

7/8 X 6-1/8 X 18-1/2

4шт.

5

BN2293237

BOOT

GARRISON 32729-1

2шт.

6

BN2298333

WASHER

Hardened 1 WA1772

4шт.

7

BN2394957

SPRING

Double Eye 572383C91

2шт.

8

BN300358

NUT

M10-1.5, FLN, 8.8

8шт.

9

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

8шт.

10

BN5001054

BUMPER

Rubber, 3 3/8"

2шт.

11

BN7147025

AXLE

Front

1шт.

12

BN7147045

SUPPORT

U-Bolt Front Spring

2шт.
