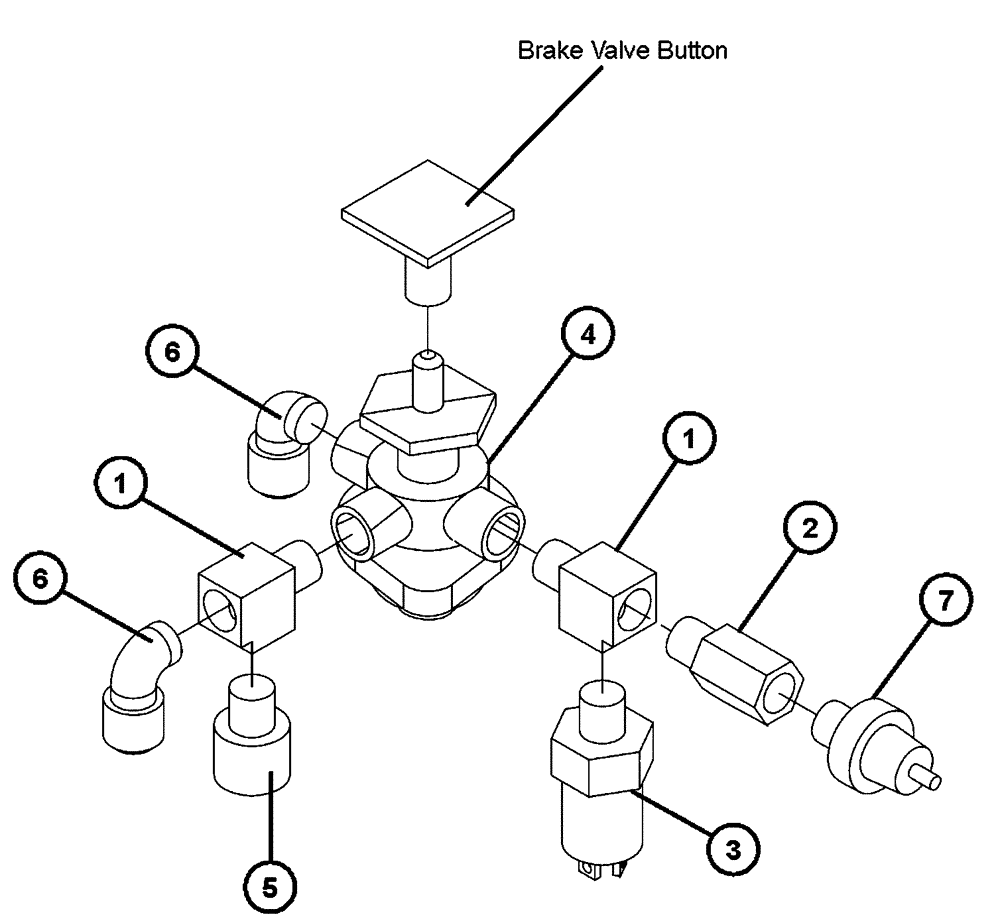

Запчасти Case IH FLX4300 (07-008) - PARKING BRAKE VALVE GROUP Pneumatics

1

BN2292006

FITTING

Tee, 227200

2шт.

2

BN2293138

FITTING

1/4 X 1/8 FG-S

1шт.

2a

BN2294199

BUTTON

Brake Valve

1шт.

Parts Of Fitting, 1/4 X 1/8 FG-S., P/N BN2293138

1шт.

3

BN2392016

PRESSURE SWITCH

Pressure 76062

1шт.

4

BN2392202

BRAKE VALVE

WM762A2A

1шт.

5

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

6

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

7

BN2394905

SWITCH

8640 CH NOR Closed

1шт.
