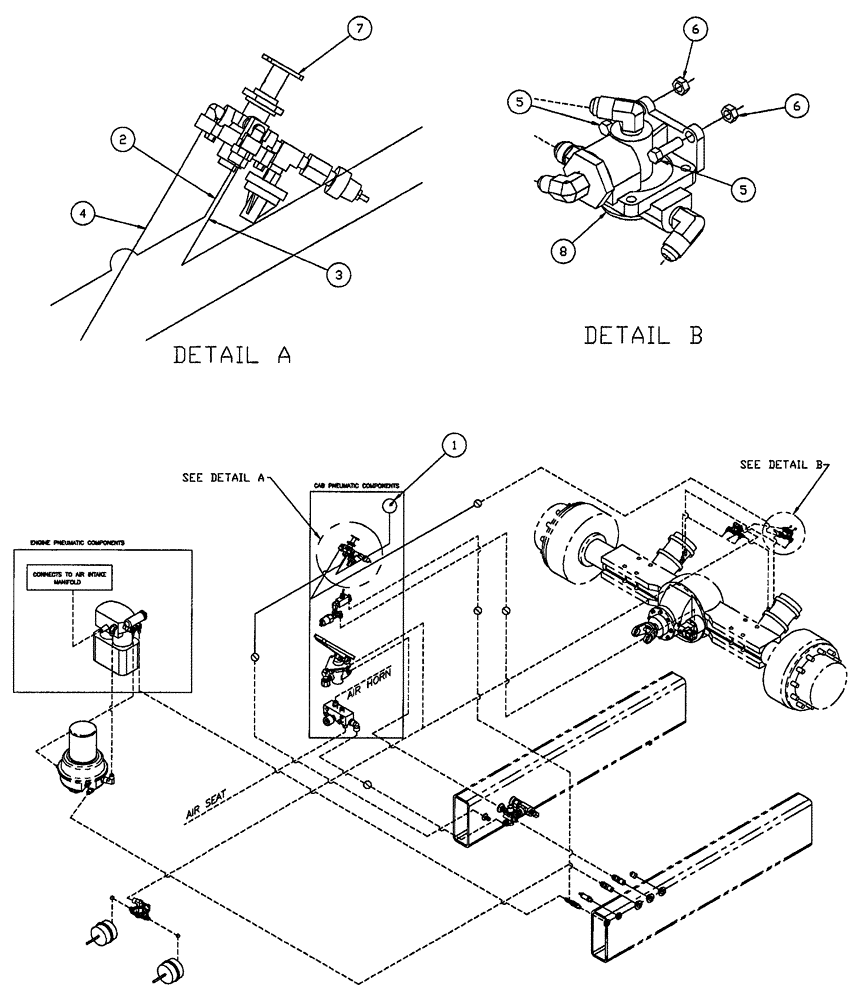

Запчасти Case IH FLX4300 (07-003) - PARKING BRAKE GROUP Pneumatics

1

BN2291152

REPAIR KIT

Lowair Pressure

1шт.

2

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

5шт.

3

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

6шт.

4

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

6шт.

5

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

6

86528579

NUT,M8 x 1.25

2шт.

7

BN306846

Parking Brake Valve Group See Fig 07-008

1шт.

8

BN306847

MANIFOLD

Quick Release, Park Brake See Fig 07-010

1шт.

9

BN325629

Alarm, Group, Park Brake See Fig 07-006

1шт.
