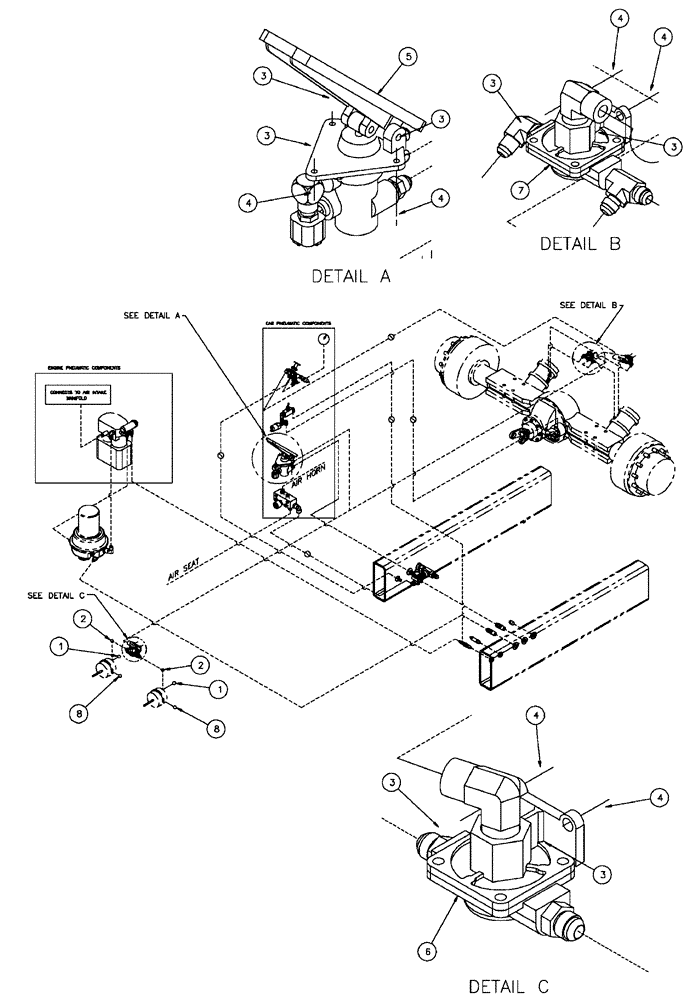

Запчасти Case IH FLX4300 (07-002) - SERVICE BRAKE GROUP Pneumatics

1

BN2290528

FITTING

2103-6-6

2шт.

2

BN2390661

FITTING

2353-6-6

2шт.

3

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

7шт.

4

86528579

NUT,M8 x 1.25

7шт.

5

NSS

NOT SOLD SEPARAT

Brake Pedel Valve Group See Fig07-007

1шт.

6

NSS

NOT SOLD SEPARAT

Quick Release, Front Brake See Fig 07-009

1шт.

7

BN306850

MANIFOLD

Quick Release, Rear Brake See Fig 07-011

1шт.

8

BN72079

PLUG

3/8"NPT Pipe BI

2шт.
