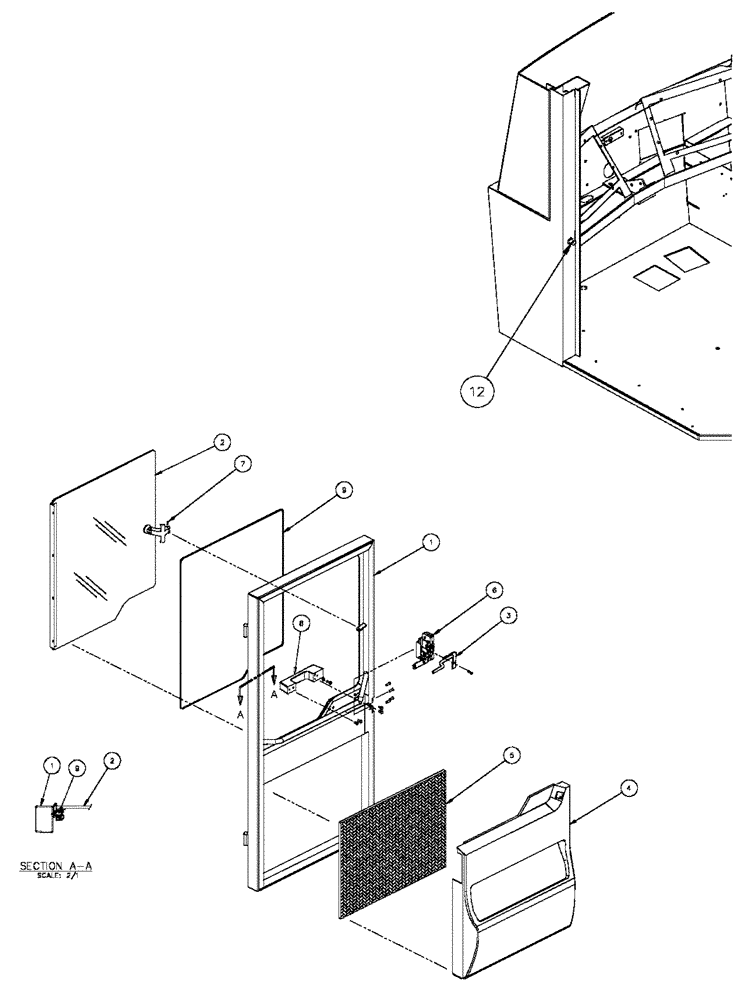

Запчасти Case IH FLX4300 (01-020[02]) - CAB EXTERIOR - DOOR ASSEMBLY (10) - CAB

0

BN315636

MS Door Assembly '99 Cab Complete (Includes Ref. 2 Through 9)

1шт.

0

BN315907

DOOR

SS Assembly '99 Cab Complete (Includes Ref. 2 Through 9)

1шт.

1

BN315926

DOOR

MS Frame, Door (For Door Assembly 315636)

1шт.

1

BN315927

SS Frame, Door (For Door Assembly 315907)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

NSS

NOT SOLD SEPARAT

Swing Out Window, See Fig.01-022

1шт.

3

BN313665

EXTENSION

Weldment, Release

1шт.

4

BN314492

COVER

ABS

1шт.

5

BN314491

FOAM INSULATION

1шт.

6

BN313664

LATCH

Cam, Cab, FLX

1шт.

7

BN2406306-017

ROLL PIN

3/16 X 1/2

1шт.

8

BN66106

HANDLE

Outside

1шт.

BN303475

DOOR LOCK KEY

Set Of 2

1шт.

9

BN315637

SEAL

Bulb, Window Titan

1шт.

10

BN315638

DOOR SEAL

Bulb,Titan Cab

1шт.

11

BN315639

RETAINER

Seal Titan Door

1шт.

12

R51754

STRIKER

Door Striker

1шт.
