(01-015) - HVAC HOSE GROUP (FLX4375)

Запчасти Case IH FLX4300 (01-015) - HVAC HOSE GROUP (FLX4375) (10) - CAB

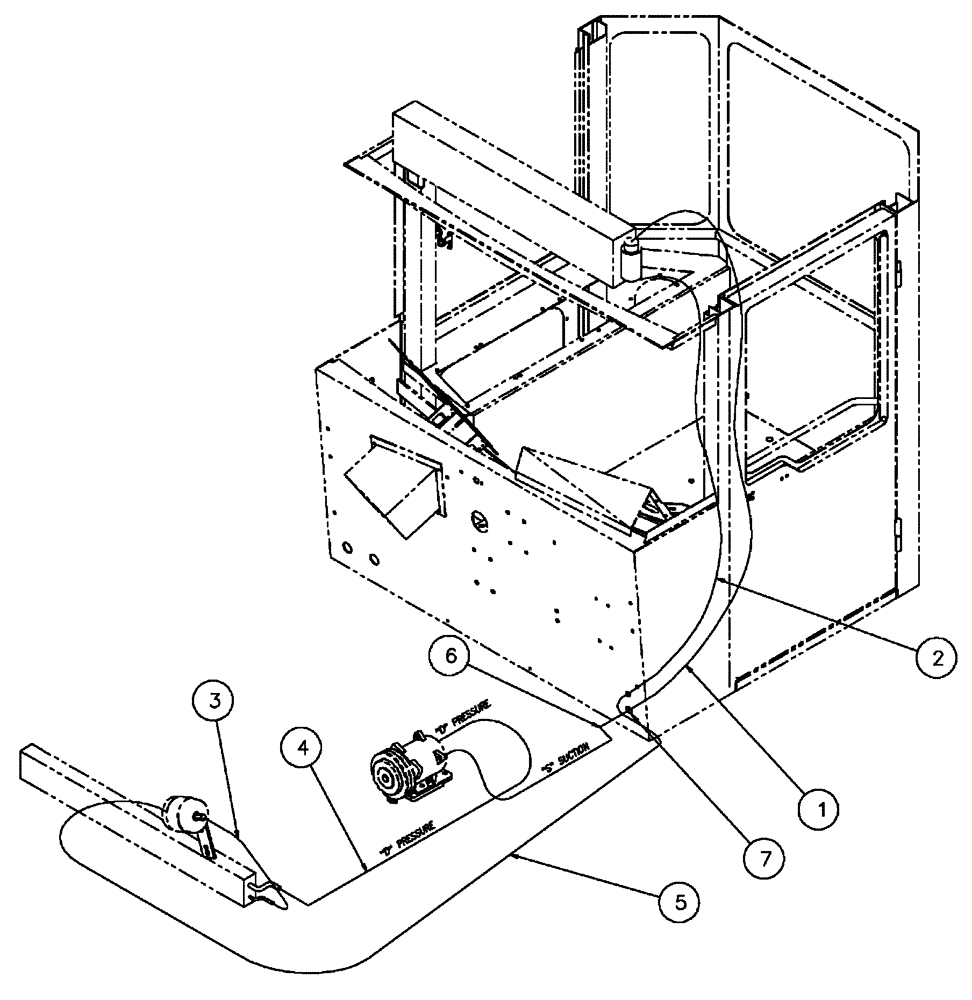

Схема запчастей Case IH FLX4300 - (01-015) - HVAC HOSE GROUP (FLX4375) (10) - CAB
7
2
6
3
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN320842

HOSE

Assembly, Bulkhead To Evaporator

1шт.

2

BN320841

HOSE

Assembly, Evaporator To Cab

1шт.

3

BN320930

HOSE

Assembly, COND. To Dryer

1шт.

4

BN320931

HOSE

Assembly, Comp To COND.

1шт.

5

BN320929

HOSE

Assembly, Dryer To Cab

1шт.

6

BN320932

HOSE

Assembly, Cab To Comp

1шт.

7

411106A1

FITTING

Bulkhead 7/8-14M

1шт.
