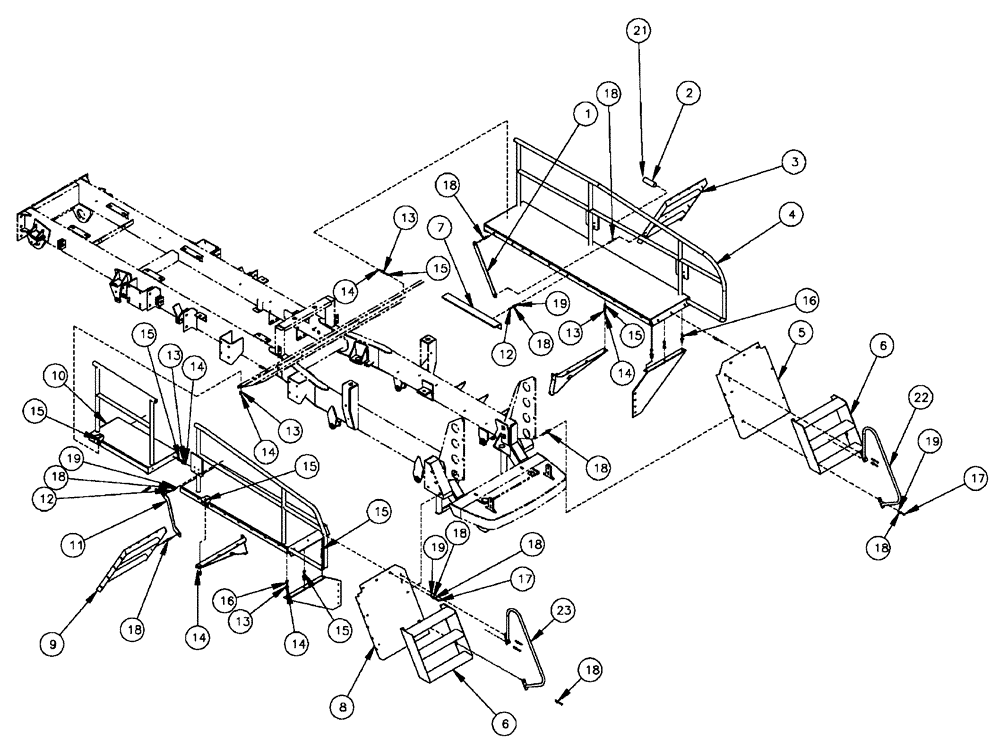

Запчасти Case IH FLX4300 (04-011) - WALKWAY, FRONT FENDERS Frame & Suspension

1

BN7141829

PLATE

Support Rod

1шт.

2

BN7141860

HOSE

Door/Window Bumper

1шт.

3

BN7141905

SPLASH SHIELD

Weldment, Rear Splash Plat

1шт.

4

BN304159

WALKWAY

CATWALK Weldment, R/S Walkway

1шт.

5

BN322399

SPLASH SHIELD

Weldment, FR Splash PL

1шт.

6

BN322391

STEP

Weldment

2шт.

7

BN7141993

ANGLE

Step Plate

1шт.

8

BN322400

SPLASH SHIELD

Weldment, FR, CS

1шт.

9

BN7141904

SPLASH SHIELD

Weldment, Rear Plat

1шт.

10

BN304550

Split Walkway Assembly, See Fig 04-012

1шт.

11

BN303682

GUARD

Splash SUPP.

1шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

15шт.

13

BN300500

WASHER,M12, 10.9

24шт.

14

100038

NUT,M12 x 1.75, Cl 8

12шт.

15

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

10шт.

16

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

17

BN322388

SCREW,Hex, M10 x 1.5 x 30mm, SST

M10-1.5 X 30, HH, SS

18шт.

18

BN325184

WASHER

3/8, FW, SS, Heavy, SPEC. #MS815

66шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

33шт.

21

BN9990113

Ty Rap, RTH-1400

2шт.

22

BN311976

HANDRAIL

Weld R/S

1шт.

23

BN310363

HANDRAIL

Weldment

1шт.
