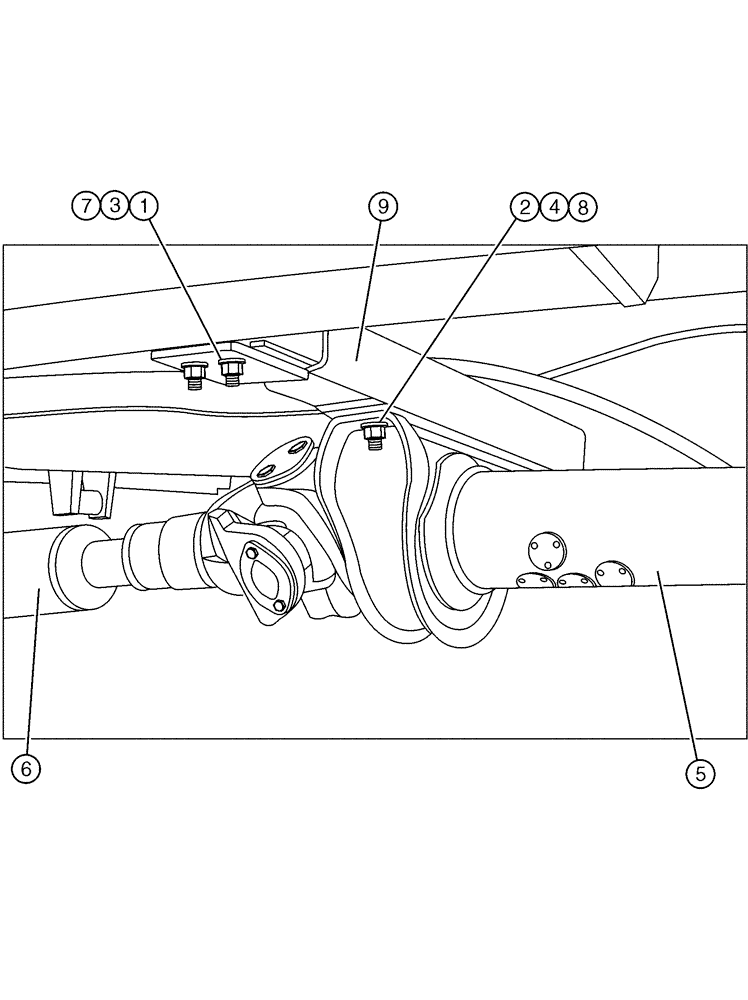

Запчасти Case IH FLX4300 (03-005) - DRIVELINE (FLX4375) (03) - TRANSMISSION

1

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

2

100038

NUT,M12 x 1.75, Cl 8

2шт.

3

BN300499

WASHER,M10, 10.9

8шт.

4

BN300500

WASHER,M12, 10.9

4шт.

5

BN302122

DRIVEN SHAFT

1710 W/ Hanger

1шт.

5

BN2294170

U-JOINT SPIDER

1шт.

Service Parts For Ref. 5

1шт.

5

BN307685

TUBE

And Yoke

1шт.

Service Parts For Ref. 5

1шт.

5

BN307686

HANGER

Bearing

1шт.

Service Parts For Ref. 5

1шт.

5

BN307687

YOKE

End

1шт.

Service Parts For Ref. 5

1шт.

5

BN307688

WASHER

1шт.

Service Parts For Ref. 5

1шт.

5

BN307689

NUT

1шт.

Service Parts For Ref. 5

1шт.

6

BN302123

DRIVEN SHAFT

1710 Head Slip

1шт.

6

BN2294170

U-JOINT SPIDER

2шт.

Service Parts For Ref. 6

1шт.

6

BN307699

YOKE

Slip

1шт.

Service Parts For Ref. 6

1шт.

6

BN307700

DUST CAP

1шт.

Service Parts For Ref. 6

1шт.

6

BN307701

TUBE

Slip

1шт.

Service Parts For Ref. 6

1шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

8

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

9

BN303064

HANGER

Driveline, 3176

1шт.
