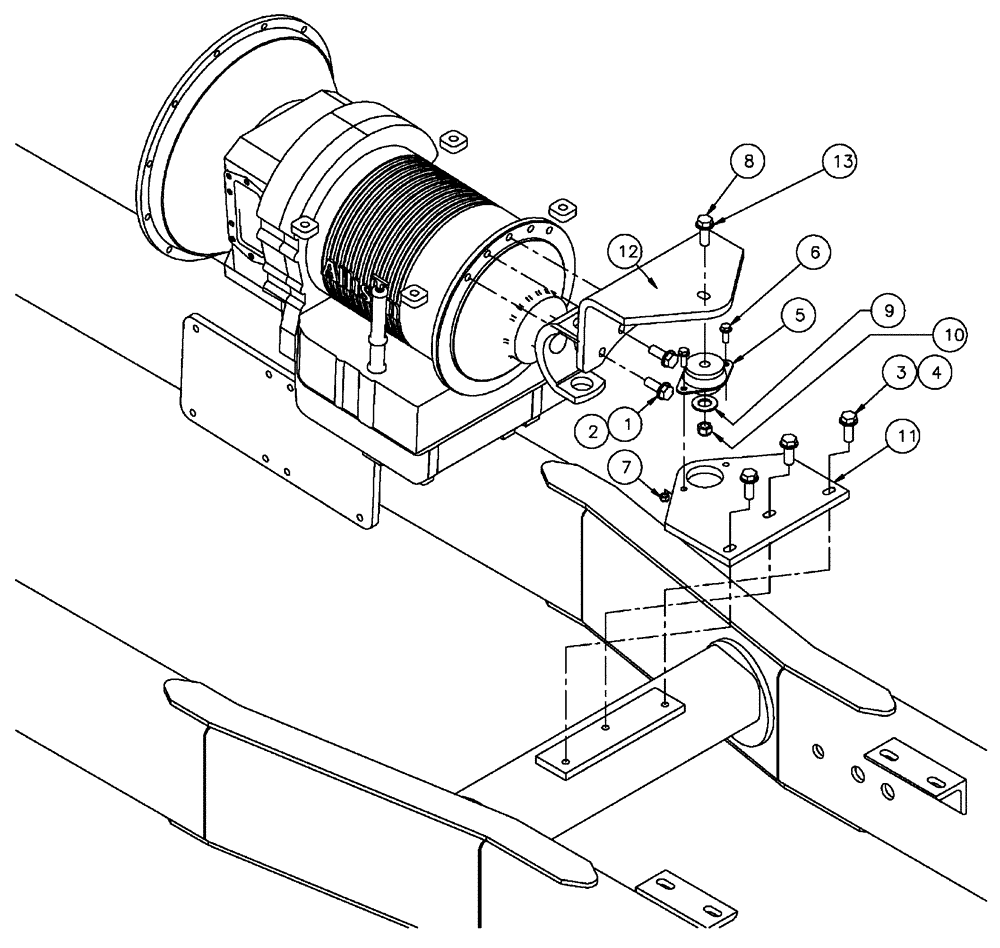

Запчасти Case IH FLX4300 (03-004) - TRANSMISSION MOUNTING (FLX4300) (03) - TRANSMISSION

1

9706693

BOLT,M12 x 60mm, Cl 8.8

5шт.

2

BN300500

WASHER,M12, 10.9

5шт.

3

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

3шт.

4

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

3шт.

5

BN306728

ENGINE MOUNT

1шт.

6

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

8

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

1шт.

9

BN308164

WASHER

Rebound

1шт.

10

86512555

NUT,M16 x 2, Cl 10

1шт.

11

BN318426

PLATE

Trans Frame Mount

1шт.

12

BN318427

PLATE

Trans Mount

1шт.

13

BN300501

WASHER

M16, FW, 10.9

1шт.
