Запчасти Case IH FLX4300 (02-053) - KIT - ENGINE OVERHAUL (01) - ENGINE

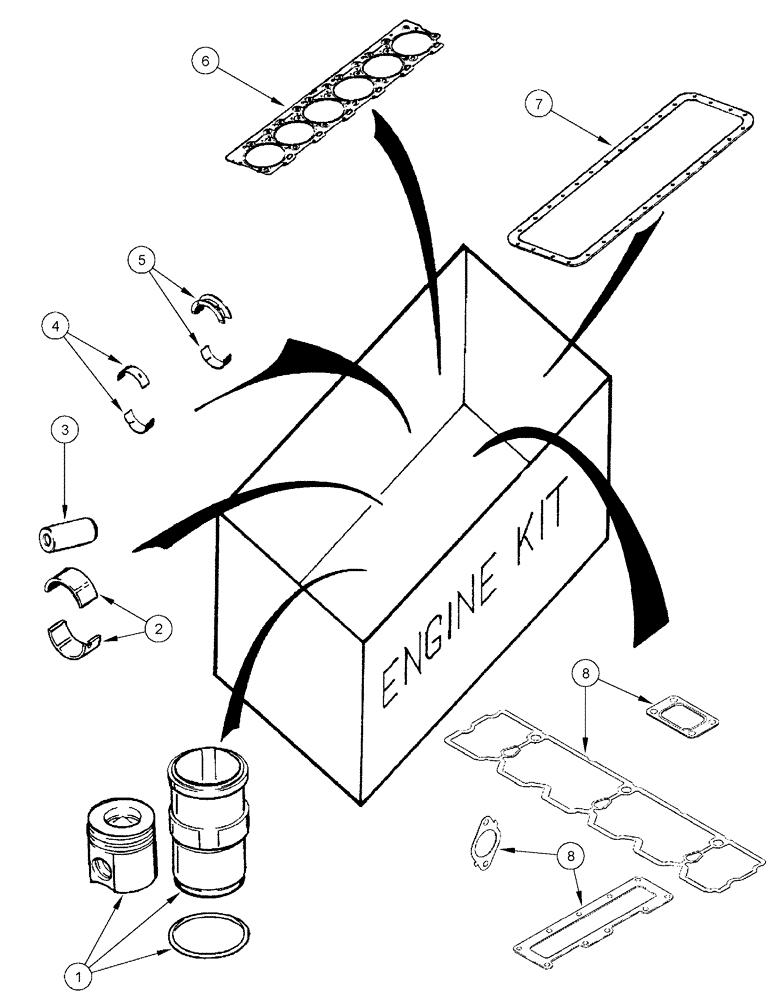

Схема запчастей Case IH FLX4300 - (02-053) - KIT - ENGINE OVERHAUL (01) - ENGINE
7
1
8
6
3
8
5
2
4

Артикул

Название

Примечание

Количество

1

A77970

PISTON & RINGS KIT

Standard

6шт.

Some Parts Not Shown

1шт.

See Fig. 02-050

1шт.

2

87443389

BEARING LINER

Kit - Upper And Lower, Standard

6шт.

See Fig. 02-050

1шт.

3

J934046

PISTON PIN,45mm OD x 91mm L

6шт.

See Fig. 02-050

1шт.

4

J945930

BEARING SET

Main, Upper and Lower Set, Standard

6шт.

See Fig. 02-048

1шт.

5

J945929

THRUST BEARING

Main Thrust, Upper And Lower Set, Standard

1шт.

See Fig. 02-048

1шт.

6

J943366

CYLINDER HEAD GASKET,2.11mm Thk

Standard

1шт.

See Fig. 02-043

1шт.

7

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

See Fig. 02-041

1шт.

Some Parts Not Shown

1шт.

8

A78018

GASKET KIT

Valve Grind

1шт.

See Fig. 02-051

1шт.

Some Parts Not Shown

1шт.

Not Shown

1шт.

1a

A78003

GASKET KIT

Basic Service Engine

1шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

1

86637735

SEAL,9.53mm ID x 13.97mm OD

3/8 Tube, Fl

2шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

3

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

4

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

6шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

5

313262A1

O-RING,0.07" Thk x 0.364" ID

2шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

6

J937706

GASKET,0.79mm Thk

Turbo Oil Drain Tube

1шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

7

J330081

O-RING

3.859 ID X 0.139 Inch Wide

1шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

8

J330202

O-RING,11.3MM ID x 2.2 Thk

2шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

9

J330478

O-RING,0.07" Thk x 0.676" ID

Sealing

2шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

10

J678603

O-RING,2.2mm Thk x 9.3mm ID

2шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

2шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

12

J867043

SEAL,1.78mm Thk x 10.82mm ID

O-Ring

6шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

13

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

14

J906659

SEAL

Injector Nozzle, 7 MM Injector Tip

6шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

15

J911941

GASKET

Mounting, Turbocharger

1шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING O-Ring - Flywheel Housing To Block

1шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

17

J917892

GASKET,0.79mm Thk

Mounting

1шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

18

J919369

GASKET,0.5mm Thk

Turbocharger To Manifold

1шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

19

J931059

GASKET

Mounting, Fuel Transfer Pump

1шт.

Kit - Basic Service Engine, Not Illustrated

1шт.

20

J935171

SEALING WASHER

Special, 12 X 19 X 1.5 MM

4шт.

21

J937479

MANIFOLD GASKET

Exhaust

6шт.

22

J944646

MANIFOLD GASKET

Intake Cover

1шт.

23

J944647

GASKET

Connector

1шт.

24

J944683

GASKET

Breather

1шт.

Выбрано товаров: 65
