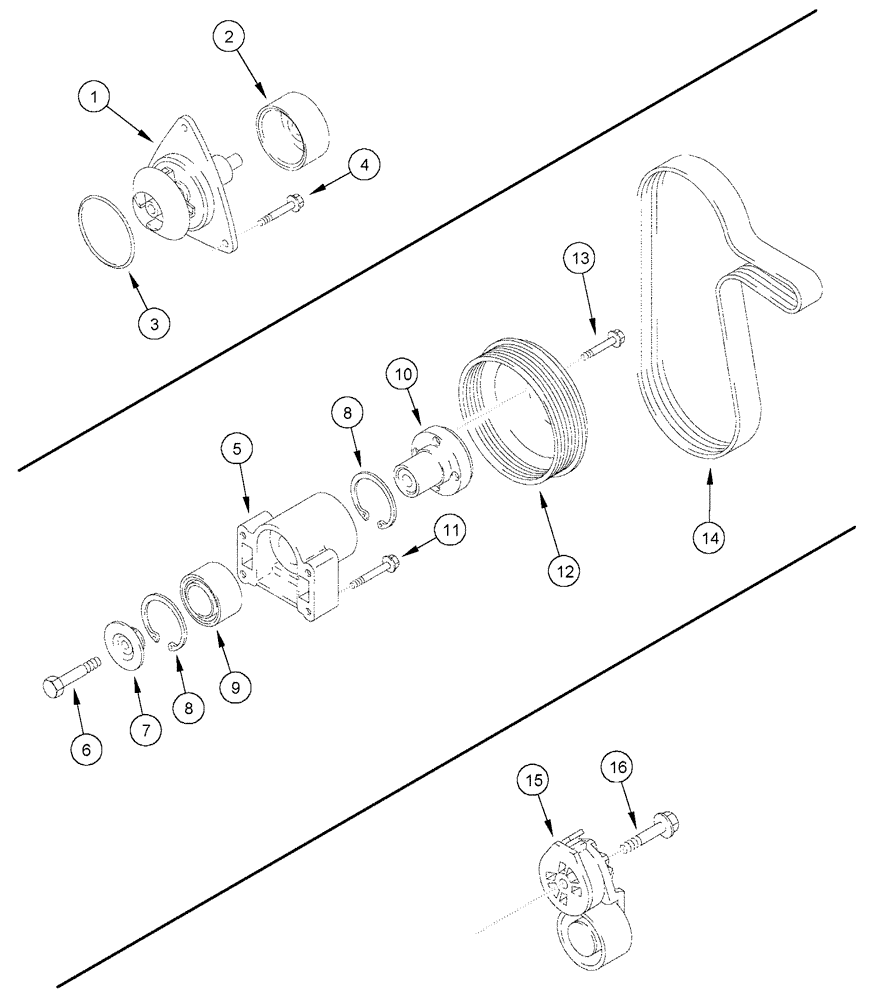

Запчасти Case IH FLX4300 (02-034) - WATER PUMP, FAN DRIVE, AND BELT TENSIONER (01) - ENGINE

0

J804927

WATER PUMP

Kit

1шт.

87308650R

REMAN-WATER PUMP

FLX4300, FLX4375 Both (9/02-6/03) Reman for New P/N J804927

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump - Water

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley - Water Pump

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

J934054

FLANGE BOLT

Hex, Flange, 8 - 1.25 X 28 MM

3шт.

5

J942896

SUPPORT

Assembly, Fan

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, M10 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

Fan Hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

Fan

1шт.

11

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

4шт.

12

J926855

PULLEY,187.23mm OD

Fan

1шт.

13

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

14

J944840

V-BELT,27.92 mm W x 1988.60 mm L, 8 Ribs

Fan

1шт.

15

J945849

BELT TENSIONER

Belt

1шт.

16

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.
