Запчасти Case IH FLX4300 (02-026) - RADIATOR GROUP (FLX4300) (01) - ENGINE

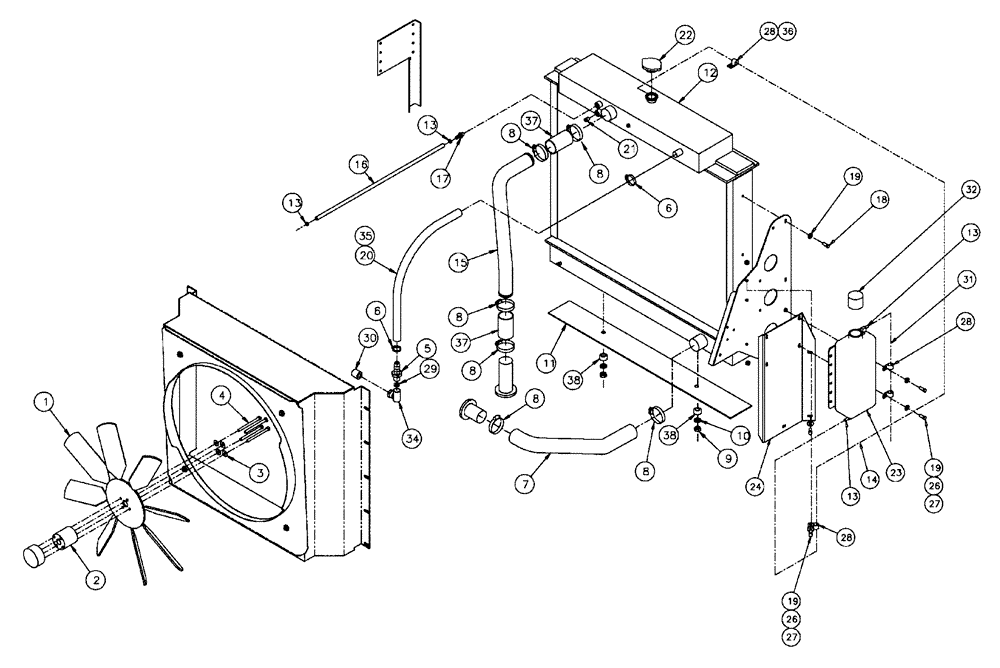

Схема запчастей Case IH FLX4300 - (02-026) - RADIATOR GROUP (FLX4300) (01) - ENGINE
19
19
26
10
13
13
17
3
31
27
30
11
8
16
12
38
38
20
8
5
37
2
13
18
32
8
37
7
4
6
23
28
13
36
8
19
27
28
9
8
14
35
22
21
34
15
24
8
29
1
6
26
28

Артикул

Название

Примечание

Количество

1

BN316001

FAN

28", 8 blade, metal

1шт.

2

A184751

SPACER,Fan, 74/75mm Thk

Fan, 75 mm

1шт.

3

BN300499

WASHER,M10, 10.9

4шт.

4

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

5

BN305700

FITTING

12MP-16HB

1шт.

6

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

2шт.

7

BN315704

RADIATOR HOSE,2.25" ID x 6.93", SAE J20, SAE 20R4

Lower Radiator

1шт.

8

J918521

HOSE CLAMP,59mm - 83mm

Clamp-Rad. Hose (59-83MM)

6шт.

9

832-46416

NUT,M16 x 2, Cl 8

2шт.

10

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

11

BN311804

PAD

Radiator, Neoprene

1шт.

12

NSS

NOT SOLD SEPARAT

Radiator 41 X 33

1шт.

13

BN76094

HOSE CLAMP

SS #M4

3шт.

14

BN319780

Radiator To Recovery

1шт.

15

BN319899

TUBE

Top 4Wheel Radiator

1шт.

16

BN314901

FUEL HOSE,0.375" ID x 30.0", SAE 30R7

1шт.

17

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

19

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

20

BN314899

HOSE,1.00" ID x 48.00", SAE 100R17, SAE 100R1, SAE 100R2

1шт.

20

BN319900

HOSE,0.75" ID, 1.00" ID x 28.33", SAE J20, SAE 20R4 Class D1

4 Wheel Engine Fill

1шт.

21

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

22

A170241

RADIATOR CAP

15 psi

1шт.

23

90-7717T2

RESERVOIR

Tank, Coolant Recovery

1шт.

24

BN323775

MOUNTING PLATE

Mount, Radiator Recover Botle

1шт.

26

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

27

86528579

NUT,M8 x 1.25

7шт.

28

BN570022

CLAMP

vinyl coated 1/2"

4шт.

29

BN321139

ORIFICE

Orifice, 3/8"

1шт.

30

BN51679

ADAPTER

Fitting, 3/4NPT x 3/4NPSM, ML

1шт.

31

BN319781

Recovery Overflow

1шт.

32

1547924C1

CAP

coolant recovery bottle

1шт.

34

BN321138

HOSE

12Fp-12Fpx90

1шт.

35

BN304292

COVER

Nylon Hose Cover 1.42 ID

1шт.

36

280736

NUT,5/16"-18, GC

1шт.

37

342320A1

HOSE,2.25" ID x 4.00"

2шт.

38

BN2297363

MOUNTING PLATE

Isolator 200106R1

2шт.

Выбрано товаров: 37
