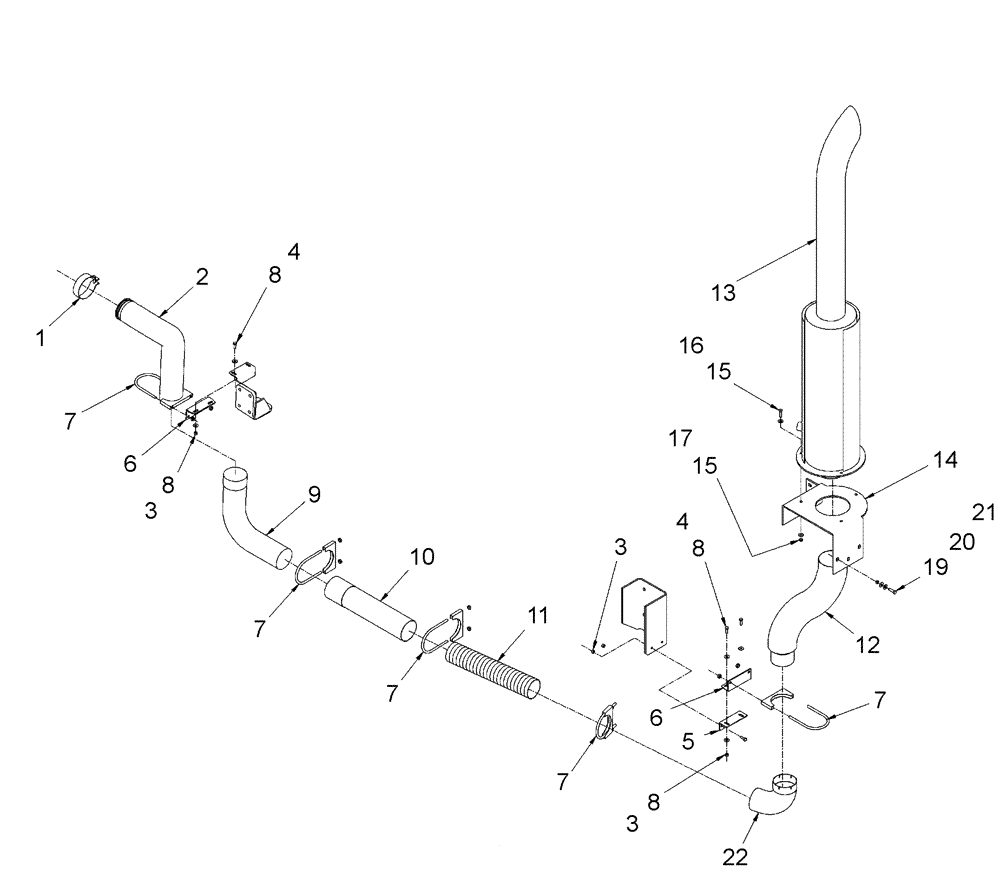

Запчасти Case IH FLX4300 (02-022) - AIR EXHAUST GROUP (FLX4300) (01) - ENGINE

1

A170807

CLAMP,102mm ID

4" T-Bolt

1шт.

2

BN314410

TUBE

Exhaust

1шт.

3

86528579

NUT,M8 x 1.25

6шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

6шт.

5

BN314753

BRACKET

Exhaust Hanger

1шт.

6

BN314754

BRACKET

Exhaust Hanger

2шт.

7

BN25927

CLAMP,104.8mm ID

4" Muffler

5шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

9

BN314752

ELBOW

90, Exhaust

1шт.

10

BN318142

TUBE

Exhaust Extension

1шт.

11

BN303467

HOSE,4.00" ID x 18.00"

1шт.

12

BN314409

TUBE

Exhaust

1шт.

13

BN311343

MUFFLER

Assembly, 14-1800 CFM See Fig 02-024

1шт.

14

BN304531

BRACKET

Muffler

1шт.

15

140017

WASHER,M10 x 20mm OD x 2mm Thk

3шт.

16

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

19

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

5шт.

20

BN300500

WASHER,M12, 10.9

5шт.

21

100038

NUT,M12 x 1.75, Cl 8

5шт.

22

BN318141

ELBOW

90 4", 6" X 6"

1шт.
